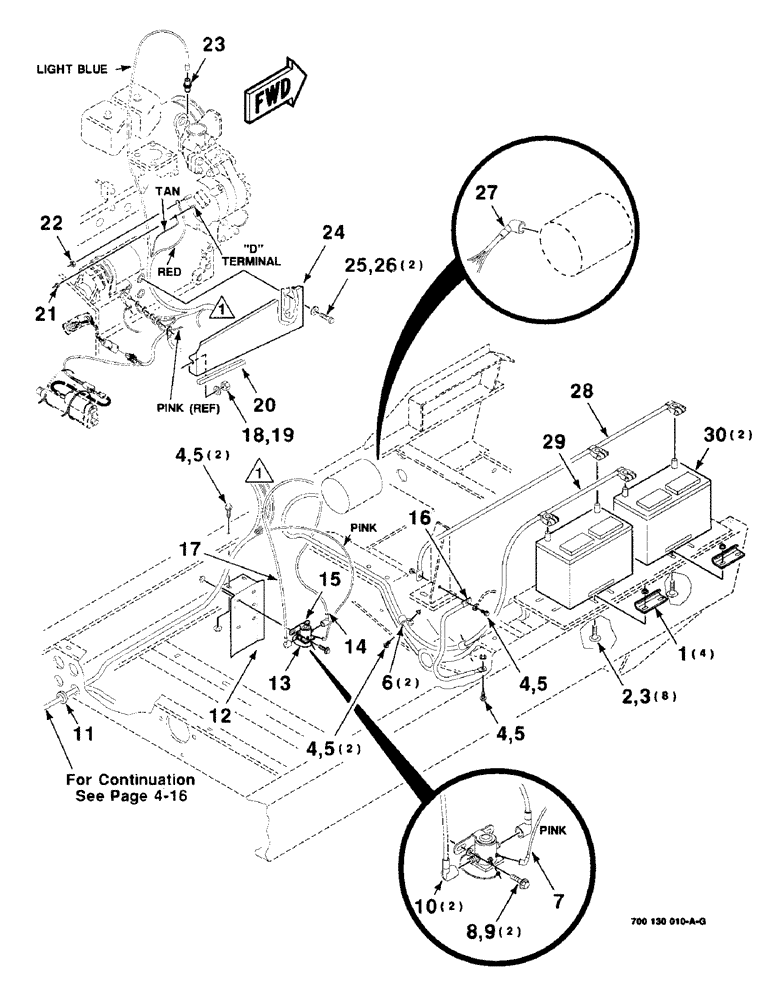

Запчасти Case IH 8850 (04-24) - ENGINE WIRING ASSEMBLY, BATTERY CABLES, SERIAL NUMBER CFH0099001 THRU CFH0099164 (04) - ELECTRICAL SYSTEMS

1

6827695

CLAMP BRACKET

HOLDDOWN

4шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

3

231-5146

FLANGE NUT,3/8"-16

8шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

6

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

2шт.

7

700707064

SHIELD

- terminal, electrical

1шт.

8

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

10

700707961

SHIELD

- terminal, electrical

2шт.

11

700707095

GROMMET

1шт.

12

700115731

SUPPORT

MOUNTING - relay

1шт.

13

8722621

ELECTRICAL WIRE

WIRE - electrical

1шт.

14

700713367

ELECTRICAL WIRE

WIRE - electrical

1шт.

15

8722639

SOLENOID SWITCH

SOLENOID

1шт.

16

722868

CABLE

- ground

1шт.

17

700713366

ELECTRICAL WIRE

WIRE - electrical

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

19

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

20

6835060

GROMMET

TRIM

1шт.

21

825-1405

NUT,M5, Cl 8

1шт.

22

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

23

700708219

TEMPERATURE SENDER

SENDER - temperature

1шт.

24

700130074

SHIELD

- starter

1шт.

25

7771843

SCREW

M12 X 1.75 X 16 C

2шт.

26

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

27

700707065

SHIELD

- terminal, electrical

1шт.

28

700707057

GROUND CABLE

CABLE - ground, battery

1шт.

29

700707058

ELECTRIC CABLE

CABLE - starter, battery

1шт.

30

B24F72W

WET BATTERY

- 24F (600 amp)

2шт.
