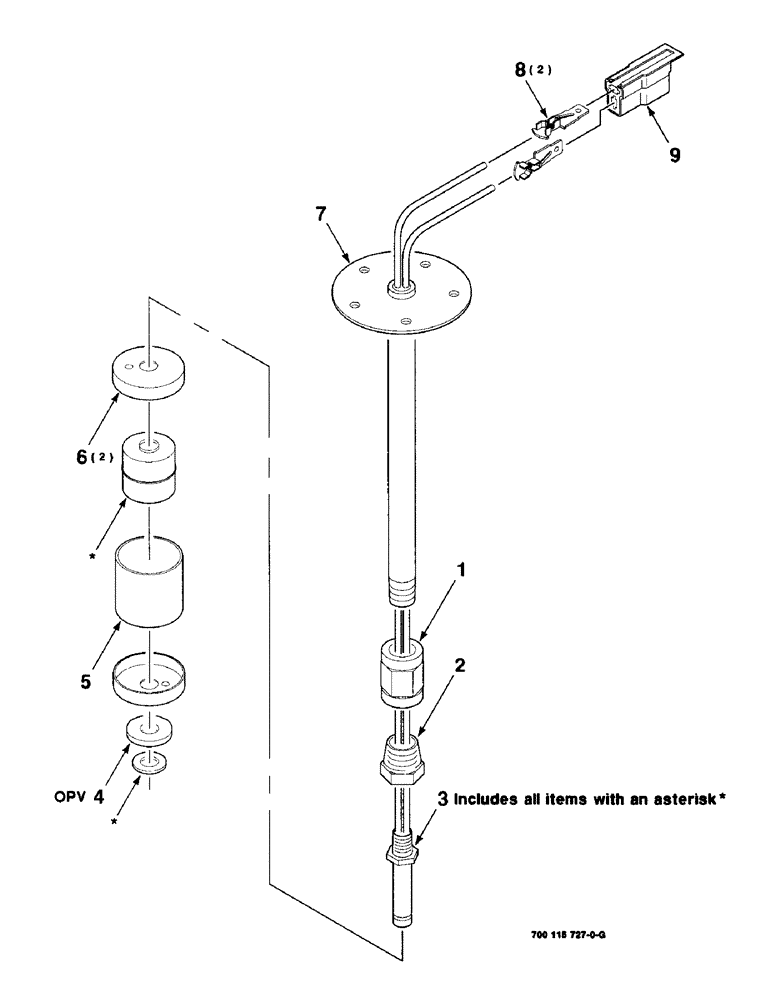

Запчасти Case IH 8850 (04-22) - FLOAT SWITCH ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

8047003

COUPLING

- hydraulic

1шт.

2

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

3

700708985

SWITCH

- float

1шт.

5

700119899

TUBE,34.93 mm OD, 33.5 mm Length

1шт.

6

700119900

CAP

2шт.

7

700115728

COVER PLATE

MTG WA - switch

1шт.

8

223-179

FITTING

TERMINAL - blade, male

2шт.

9

872290R1

ELEC CONNECTOR,Male

CONNECTOR

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
