(04-20) - ENGINE WIRING ASSEMBLY, SERIAL NUMBER CFH0099165 AND LATER

Запчасти Case IH 8850 (04-20) - ENGINE WIRING ASSEMBLY, SERIAL NUMBER CFH0099165 AND LATER (04) - ELECTRICAL SYSTEMS

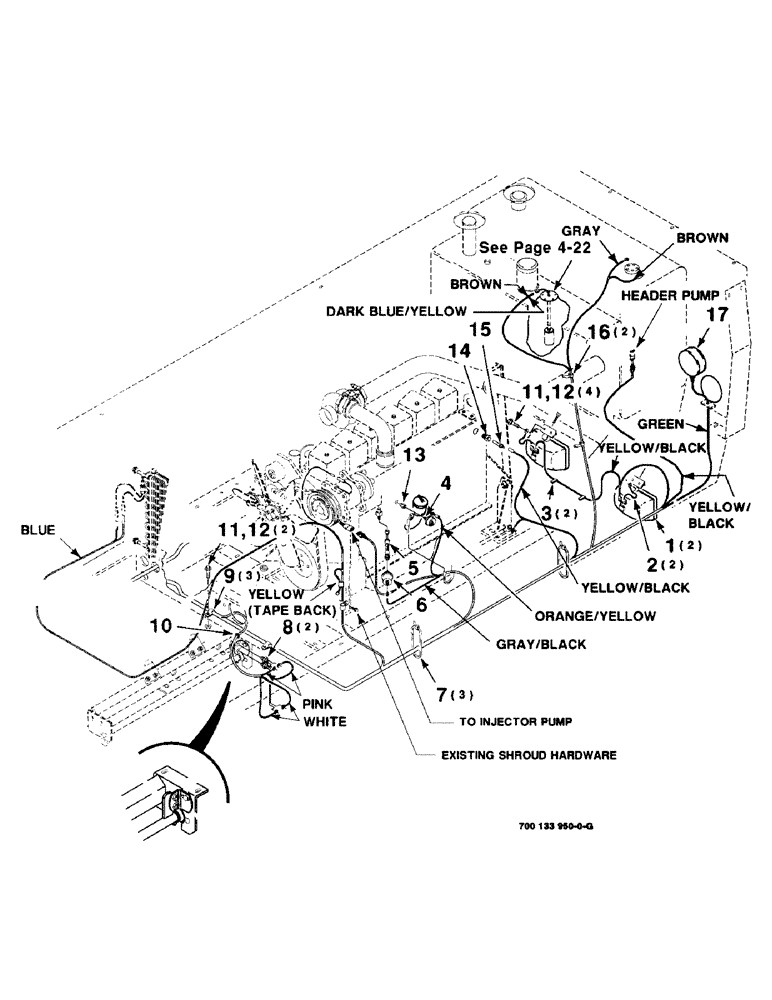

Схема запчастей Case IH 8850 - (04-20) - ENGINE WIRING ASSEMBLY, SERIAL NUMBER CFH0099165 AND LATER (04) - ELECTRICAL SYSTEMS
8
6
12
10
15
5
17
7
11
2
9
3
11
4
12
16
13
14
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700705183

HEADLAMP

LIGHT - flood

2шт.

2

700705124

WIRE

- electrical

2шт.

3

721878

CLIP

- wire

2шт.

4

L57937

SWITCH

- pressure

1шт.

5

700715360

HOSE

- hydraulic

1шт.

6

1341329C1

TRANSMITTER

SENDER - oil pressure

1шт.

7

306132C1

CABLE TIE,14.5" L

TIE - cable 14 in

3шт.

8

8025637

SWITCH

2шт.

9

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

3шт.

10

7027352

RUBBER

GROMMET

1шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

13

217-1032

ADAPTER,1/8" - 27 NPT x 1/8" - 27 NPT

1шт.

14

700713368

REDUCER

BUSHING - reducer

1шт.

15

700714587

SWITCH

- temp

1шт.

16

7745193

CLIP

- wire

2шт.

17

700710290

LAMP, TAIL

LIGHT - tail

1шт.
