Запчасти Case IH 8850 (04-18) - ENGINE WIRING ASSEMBLY, SERIAL NUMBER CFH0099001 THRU CFH0099164 (04) - ELECTRICAL SYSTEMS

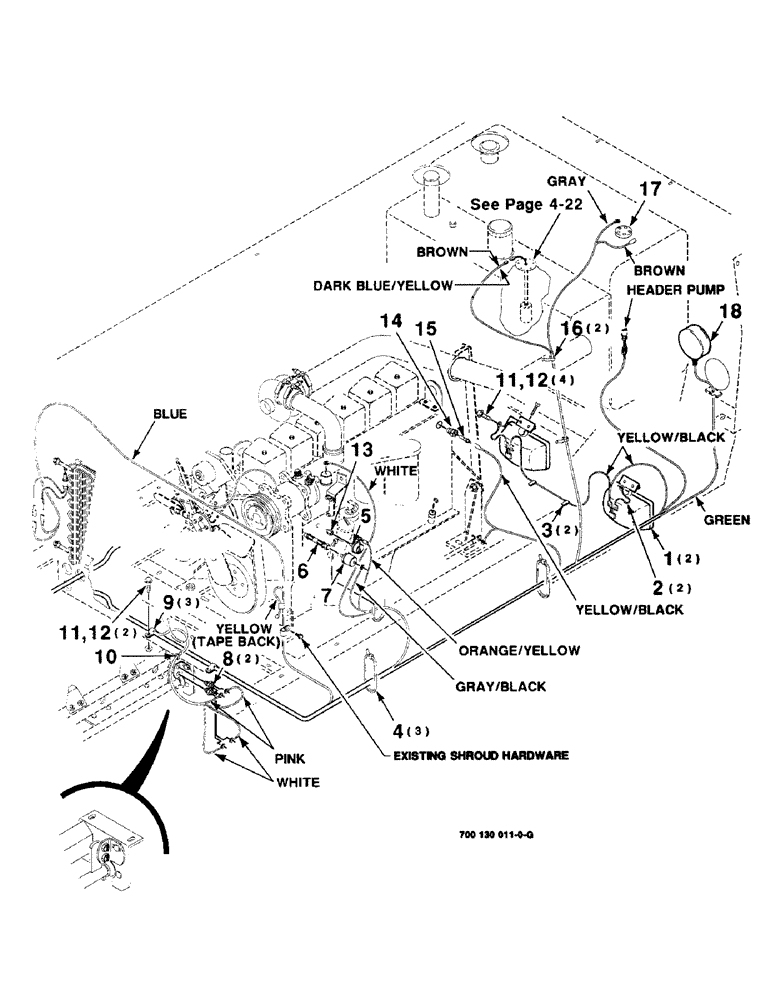

Схема запчастей Case IH 8850 - (04-18) - ENGINE WIRING ASSEMBLY, SERIAL NUMBER CFH0099001 THRU CFH0099164 (04) - ELECTRICAL SYSTEMS
3
17
13
1
12
6
18
12
11
15
4
11
16
2
14
8
7
9
10
5

Артикул

Название

Примечание

Количество

1

700705183

HEADLAMP

LIGHT - flood

2шт.

2

700705124

WIRE

- electrical

2шт.

3

721878

CLIP

- wire

2шт.

4

306132C1

CABLE TIE,14.5" L

TIE - cable 14 in

3шт.

5

L57937

SWITCH

- pressure

1шт.

6

700712181

HYDRAULIC HOSE,6.35 mm ID x 125.00 mm, TYPE 100R2 SAE J517

6.35 mm ID x 125.00 mm, TYPE 100R2 SAE J517

1шт.

7

1341329C1

TRANSMITTER

SENDER - oil pressure

1шт.

8

8025637

SWITCH

2шт.

9

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

3шт.

10

7027352

RUBBER

GROMMET

1шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

13

217-1032

ADAPTER,1/8" - 27 NPT x 1/8" - 27 NPT

1шт.

14

700713368

REDUCER

BUSHING - reducer

1шт.

15

700714587

SWITCH

- temp

1шт.

16

7745193

CLIP

- wire

2шт.

17

700707298

SENDER UNIT

UNIT - sending

1шт.

18

700710290

LAMP, TAIL

LIGHT - tail

1шт.

Выбрано товаров: 18
