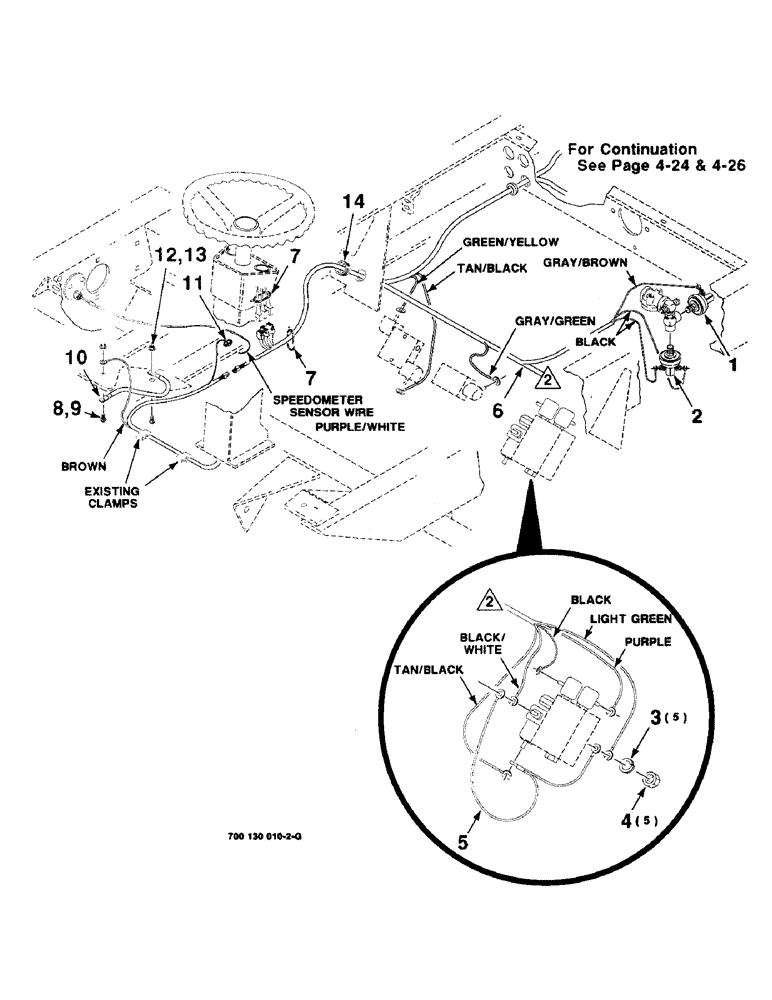

Запчасти Case IH 8850 (04-16) - ENGINE WIRING ASSEMBLY, FRONT (04) - ELECTRICAL SYSTEMS

1

700707070

PRESSURE SWITCH

SWITCH - pressure

1шт.

2

700706901

PRESSURE SWITCH

SWITCH - pressure

1шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

4

225-14210

NUT,#10-32

5шт.

5

700705693

WIRE HARNESS

HARNESS - wire

1шт.

6

700714020

HARNESS

- wire (S.N. CFH0099001 thru CFH0099164)

1шт.

700715361

HARNESS

- wire (S.N. CFH0099165 and later)

1шт.

7

306132C1

CABLE TIE,14.5" L

TIE - cable 14 in

2шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

10

722868

CABLE

- ground

1шт.

11

L77834

GROMMET

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

13

231-5146

FLANGE NUT,3/8"-16

1шт.

14

700707095

GROMMET

1шт.
