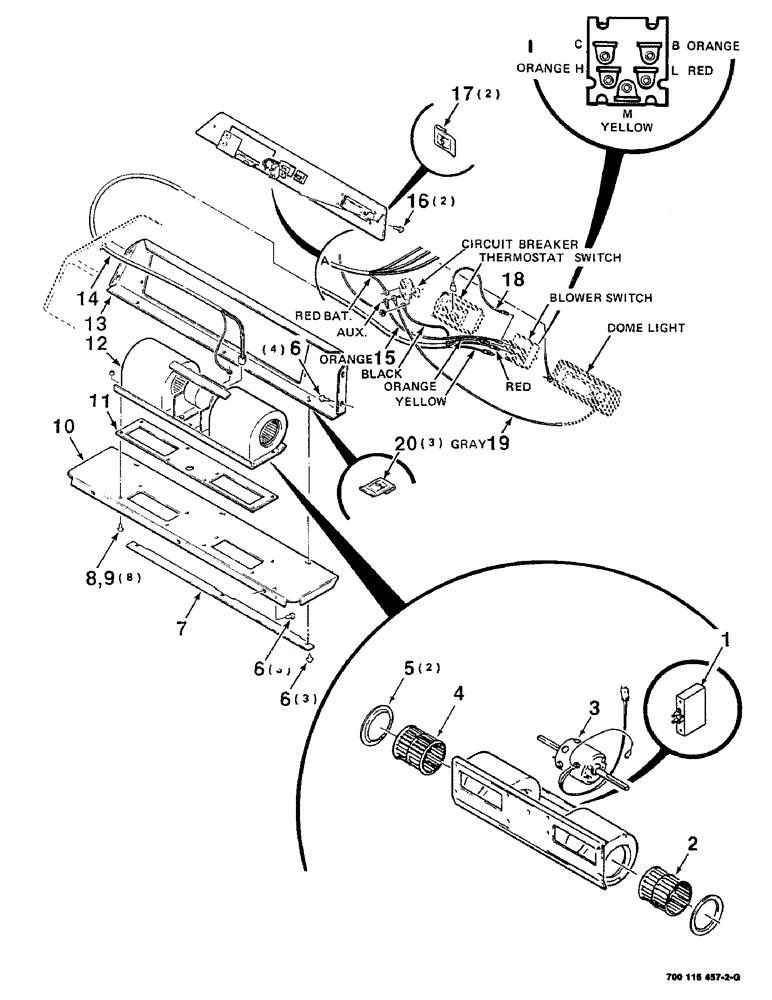

Запчасти Case IH 8850 (04-14) - CAB BLOWER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

1255876C1

RESISTOR

1шт.

2

7025869

BLOWER

WHEEL - left

1шт.

3

700713942

MOTOR

- blower

1шт.

4

7025877

BLOWER,Fan

BLOWER WHEEL - right

1шт.

5

1344175C1

RETAINER

RING - inlet

2шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

10шт.

7

700115094

RETAINER

1шт.

8

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4-20 X 3/4 HFSS

8шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

10

700110136

COVER

- blower

1шт.

11

8020273

SEAL

- blower

1шт.

12

700710548

FAN

BLOWER ASSEMBLY

1шт.

13

700110135

BULKHEAD

- evaporator (Includes items 1, 2, 3, 4 and 5)

1шт.

14

700710547

WIRE HARNESS

HARNESS - wire

1шт.

15

700705126

WIRE

- electrical

1шт.

16

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

2шт.

17

700705135

NUT

1/4-20 SPEED NUT

2шт.

18

8799462

ELECTRICAL WIRE

WIRE - electrical

1шт.

19

700705122

WIRE

- electrical

1шт.

20

131-97

SPRING NUT,Tinn, U, 5/16"-18

5/16-18 SPEED NUT

3шт.
