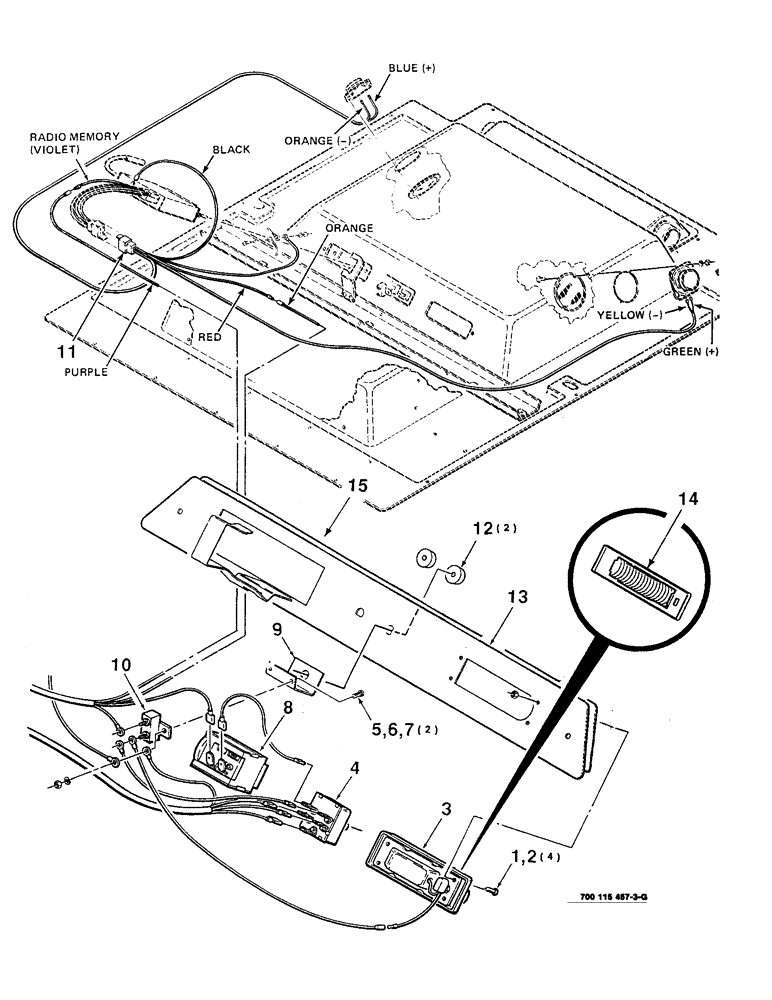

Запчасти Case IH 8850 (04-12) - BLOWER CONTROL PANEL ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

#6-32 X 3/8 CRPHMS

4шт.

2

225-14106

NUT,#6-32

4шт.

3

8020562

LAMP

DOMELIGHT

1шт.

4

A42622

SWITCH

- blower

1шт.

5

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

2шт.

6

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7

225-14110

NUT,#10-24

2шт.

8

8022337

SWITCH

- thermostat

1шт.

9

700110144

MOUNTING PLATE

MOUNT - circuit breaker

1шт.

10

7025653

CIRCUIT-BREAKER

BREAKER - circuit

1шт.

11

700712487

HARNESS

- radio

1шт.

12

539024R1

KNOB

- control

2шт.

13

700110149

PANEL

- control (Includes item 15) (S.N. CFH0080001 thru CFH0086140)

1шт.

700124526

PANEL

- control (Includes item 15) (S.N. CFH0086141 and later)

1шт.

14

8022816

SWIVEL CONNECTION

BEZEL AND LENS

1шт.

15

700705144

DECAL

- panel (S.N. CFH0080001 thru CFH0086140)

1шт.

700712488

DECAL

- panel (S.N. CFH0086141 and later)

1шт.
