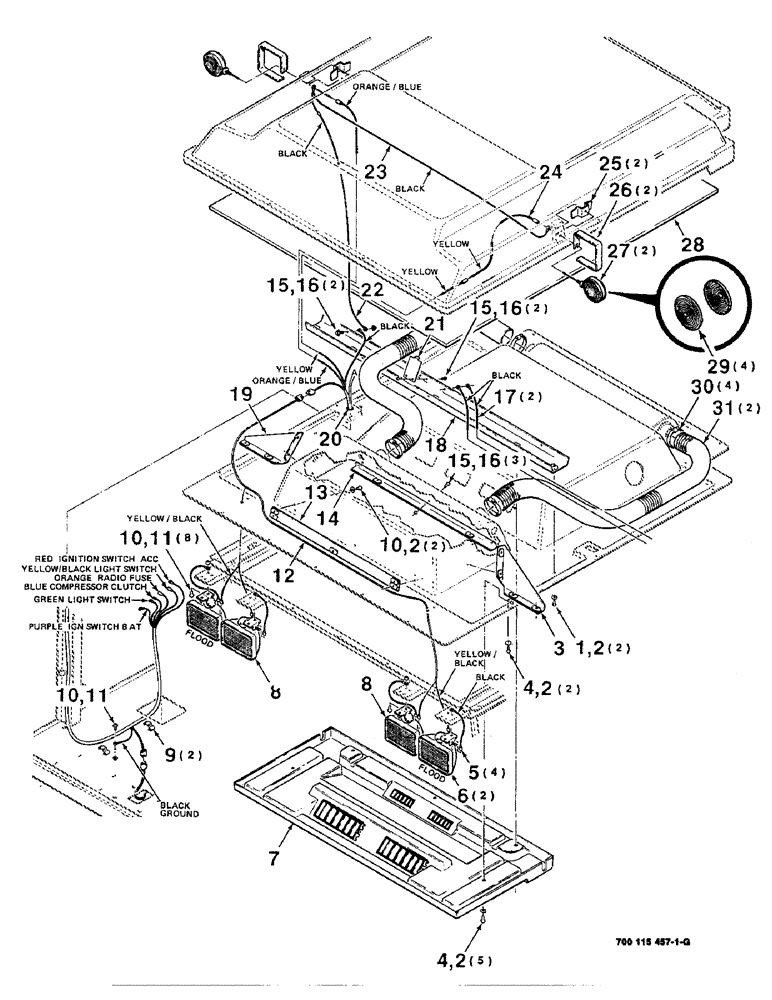

Запчасти Case IH 8850 (04-10) - CAB BLOWER, LIGHTS AND WIRING ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

2шт.

2

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

11шт.

3

700110129

SUPPORT

WA - left

1шт.

4

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

7шт.

5

700705124

WIRE

- electrical

4шт.

6

700705183

HEADLAMP

HEADLIGHT - flood

2шт.

7

700121359

COVER

ASSEMBLY

1шт.

8

700705184

WORK LAMP

HEADLIGHT

2шт.

9

7745193

CLIP

2шт.

10

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

11шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

9шт.

12

700706890

WIRE HARNESS

HARNESS - wiring

1шт.

13

700110127

STRAP

WA

1шт.

14

700115093

SUPPORT

ANGLE WA - support

1шт.

15

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

7шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

17

700705125

WIRE

- electrical

2шт.

18

700110145

SUPPORT

CHANNEL WA - support

1шт.

19

700110132

SUPPORT

WA - right

1шт.

20

700706891

WIRE HARNESS

HARNESS - wiring

1шт.

21

700124527

SUPPORT

- radio

1шт.

22

700705123

WIRE

- electrical

1шт.

23

700705143

WIRE

- electrical

1шт.

24

700705121

WIRE

- electrical

1шт.

25

700117856

REINFORCEMENT

- light

2шт.

26

700110126

SHIELD

- flasher light

2шт.

27

199954A1

PACKAGE

LIGHT - flasher (Includes item 29)

2шт.

28

700705148

ROOF LINING

COVER - foam

1шт.

29

700711749

LENS

- flasher

4шт.

30

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP

4шт.

31

700705136

HOSE

- air ducting

2шт.
