Запчасти Case IH 8850 (04-02) - STEERING COLUMN ASSEMBLY (04) - ELECTRICAL SYSTEMS

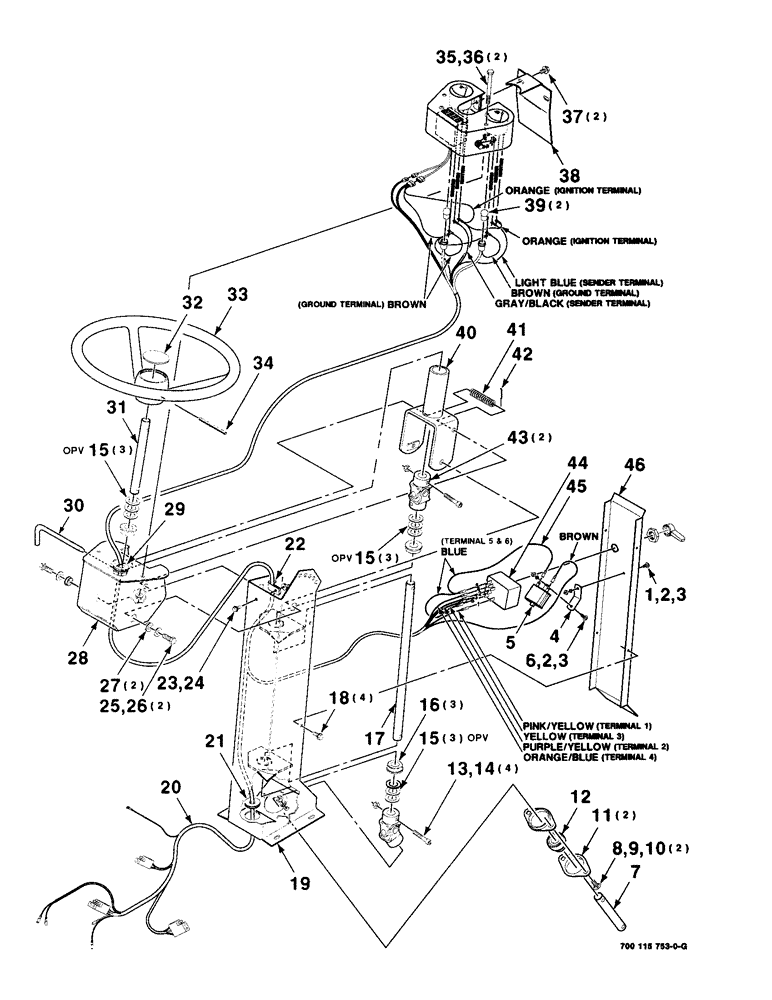

Схема запчастей Case IH 8850 - (04-02) - STEERING COLUMN ASSEMBLY (04) - ELECTRICAL SYSTEMS
44
39
7
6
23
46
42
40
12
31
15
43
32
2
8
25
18
38
5
33
15
16
21
26
15
29
17
11
19
28
20
22
1
10
36
45
14
4
13
2
41
3
34
27
9
24
30
3
35
37

Артикул

Название

Примечание

Количество

1

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

GR60M Cross Pan Hd, #10-24 x 3/8"

1шт.

2

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

3

225-14110

NUT,#10-24

2шт.

4

700111196

MOUNTING PLATE

MOUNTING - buzzer

1шт.

5

700705642

BUZZER

1шт.

6

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR60M

1шт.

7

700111072

SHAFT

1шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

2шт.

11

469924R1

FLANGE

2шт.

12

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- spherical

1шт.

13

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

5/16-18 X 1-3/4 HSHCS SPL

4шт.

14

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

4шт.

15

52183

BUSHING

3/4 X 18 GAUGE NRMB

9шт.

16

700705557

BUSHING

3шт.

17

700111071

SHAFT

1шт.

18

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 X 1/2 HWHTCTS

4шт.

19

700111056

CHANNEL

WA - post, steering

1шт.

20

700714019

HARNESS

- wire

1шт.

21

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

22

751321

CLAMP

- line

1шт.

23

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

26

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

27

700705555

BUSHING

2шт.

28

700115754

COVER

WA - upper

1шт.

29

248-1151

GROMMET,7/8" ID x 1 1/4" Groove Dia

1шт.

30

700111068

ROD

- handle

1шт.

31

700111067

SHAFT

1шт.

32

775825

PLASTIC

LENS

1шт.

33

7845050

WHEEL (STEERING)

WHEEL - steering

1шт.

34

38-11640

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

1шт.

35

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

5/16-18 X 3-1/4 C

2шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

37

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

38

700114800

COVER

- lower

1шт.

39

B50213

BULB

LAMP

2шт.

40

700111064

YOKE

WA

1шт.

41

7758139

SPRING

- compression

1шт.

42

38-31016

PIN,5/32" x 1", Coiled

1шт.

43

700705553

UNIVERSAL JOINT

U-JOINT

2шт.

44

700706894

FLASHER SWITCH

SWITCH - turn & flasher

1шт.

45

700707055

WIRE HARNESS

WIRE - harness

1шт.

46

700111066

COVER

1шт.

Выбрано товаров: 46
