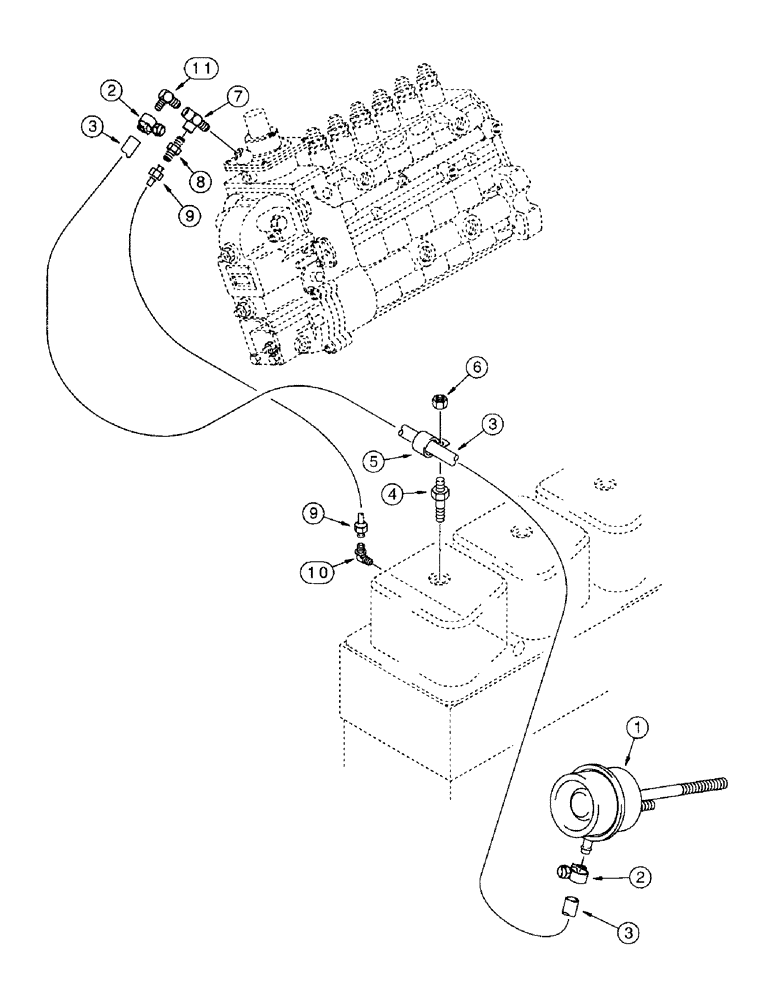

Запчасти Case IH 8850 (10-88) - ANEROID AND WASTEGATE SYSTEM, SERIAL NUMBER CFH0099165 AND LATER (03) - FUEL SYSTEM

1

J531892

ACTUATOR

- turbo wastegate

1шт.

J531892C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.

2

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia

2шт.

3

J920194

HOSE,660.00 mm

1шт.

4

J920344

FLANGE BOLT

STUD - valve cover and hose, wastegate actuator mounting

1шт.

5

J920348

CLIP,ELECTRICAL

CLAMP - hose

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

1шт.

7

J931798

TEE

- street, special

1шт.

8

J920803

CONNECTOR, ELEC

ADATPER - compression, special

1шт.

9

J926739

TUBE

- aneroid, nylon

1шт.

10

J910265

ELBOW

- male adapter

1шт.

11

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW - 90 degree, 1/4 barb end x 1/8 inch PT

1шт.
