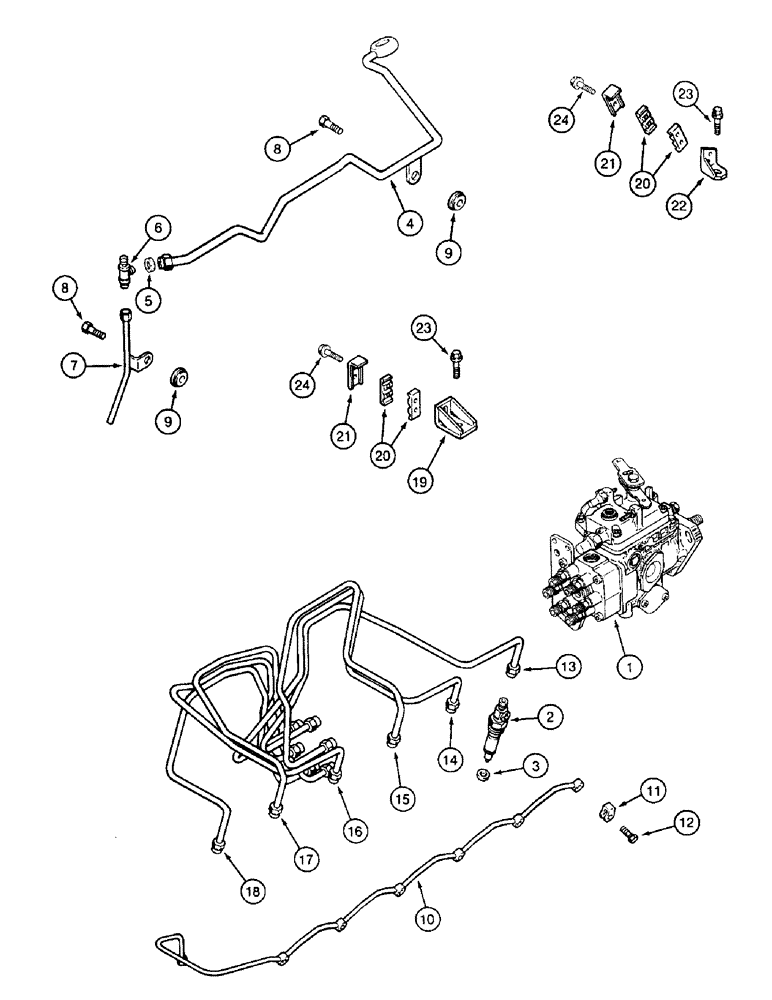

Запчасти Case IH 8850 (10-80) - FUEL INJECTION SYSTEM, SERIAL NUMBER CFH0099001 THRU CFH009916 (03) - FUEL SYSTEM

1

J916947

PUMP

ASSEMBLY - fuel injection, new, parts list page 3-12

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see page 3-15

6шт.

3

J906659

SEAL

- injector nozzle, 7mm injector tip, see page 3-15, item 3

6шт.

4

J920889

FUEL TUBE

TUBE - fuel drain, replaces J905705 tube

1шт.

Fuel tubes, items 4 and 7, bolt to tappet cover. See page 2-41, item 22.

1шт.

5

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube OD

1шт.

6

222-121

TEE,3/16", Flex Tubing

(Remove and discard hex nuts and sleeves before assembly) 3/16", Flex Tubing

1шт.

7

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

2шт.

Fuel tubes, items 4 and 7, bolt to tappet cover. See page 2-41, item 22.

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

9

J928759

SEALING WASHER

- cover bolt, replaces J900267 seal

2шт.

10

J909696

TUBE

TUBE - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

13

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

14

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

15

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

16

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

17

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

18

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

19

J917777

BRACE

- fuel tube

1шт.

20

J917747

CLAMP

- fuel tube

4шт.

21

J904519

SUPPORT

BRACE - tube retaining

2шт.

22

J917778

BRACE

- fuel tube

1шт.

23

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

2шт.

24

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.
