(03-06) - FUEL FILTER ASSEMBLY, SERIAL NUMBER CFH0099001 THRU CFH0099164, 702714 FUEL FILTER ASSY COMPLETE

Запчасти Case IH 8850 (03-06) - FUEL FILTER ASSEMBLY, SERIAL NUMBER CFH0099001 THRU CFH0099164, 702714 FUEL FILTER ASSY COMPLETE (03) - FUEL SYSTEM

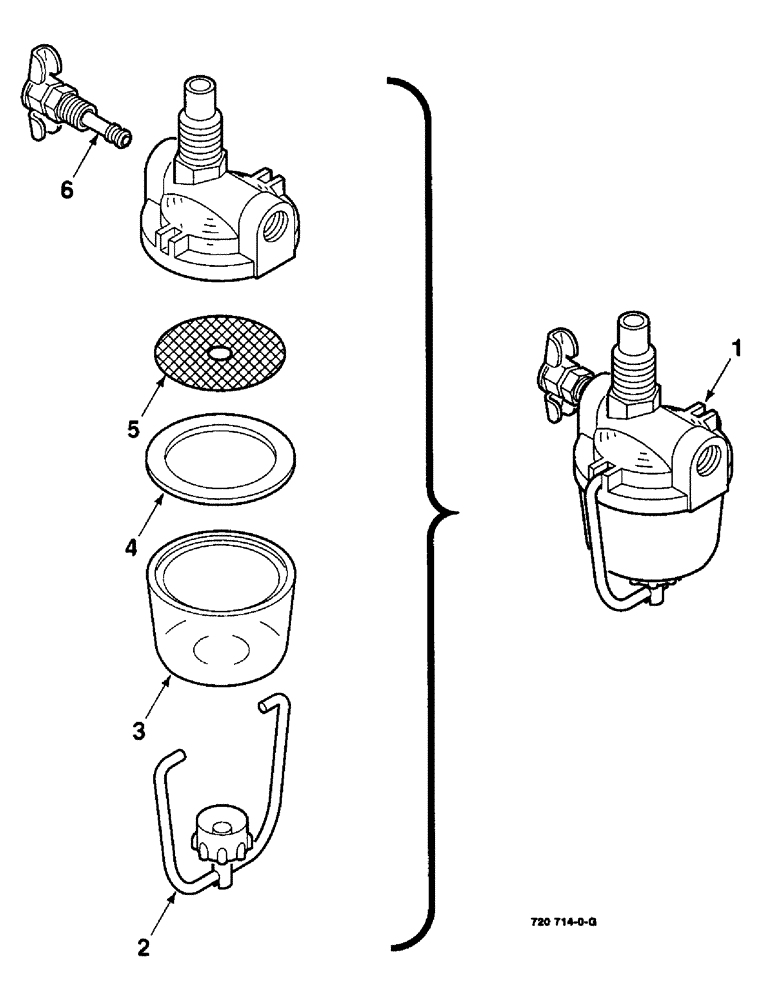

Схема запчастей Case IH 8850 - (03-06) - FUEL FILTER ASSEMBLY, SERIAL NUMBER CFH0099001 THRU CFH0099164, 702714 FUEL FILTER ASSY COMPLETE (03) - FUEL SYSTEM
2
4
6
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A30049

STRAINER ELEMENT

FUEL FILTER COMPLETE

1шт.

2

49947D

COLLAR CLAMP

BAIL ASSEMBLY (Includes stud, nut & cup)

1шт.

3

357958R1

BOWL

- glass

1шт.

4

A11208

GASKET

- bowl

1шт.

5

49923D

FILTER SCREEN

SCREEN - filter

1шт.

6

A11205

VALVE

ASSEMBLY - filter

1шт.

Выбрано товаров: 6
