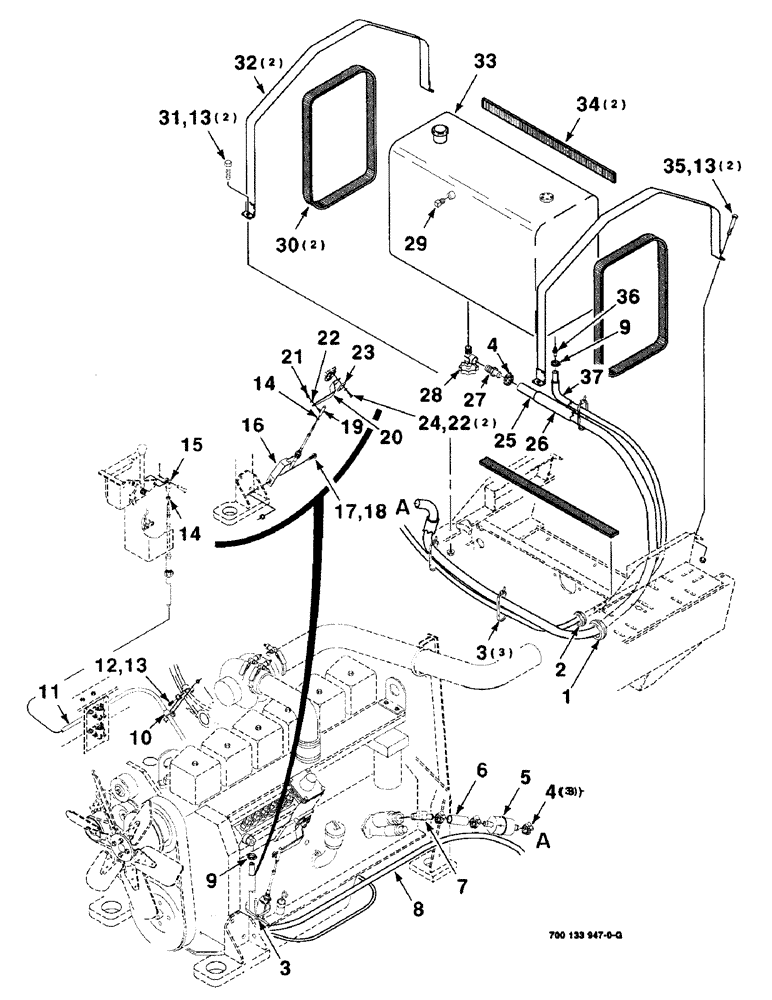

Запчасти Case IH 8850 (03-04) - FUEL TANK ASSEMBLY, SERIAL NUMBER CFH0099165 AND LATER (03) - FUEL SYSTEM

1

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

2

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

4

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

4шт.

5

194199A1

FUEL FILTER

FILTER - fuel

1шт.

6

700715374

HOSE

- fuel

1шт.

7

700715388

ELBOW

90 DEGREE BEADED

1шт.

8

700115723

FUEL HOSE,0.31" ID x 88.58", SAE 30R9

FLEXIBLE HOSE , Fuel 0.31" ID x 88.58", SAE 30R9

1шт.

9

7721020

HOSE CLAMP

CLAMP - hose

2шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

11

700708549

CABLE

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

13

231-5146

FLANGE NUT,3/8"-16

5шт.

14

225-14210

NUT,#10-32

2шт.

15

356174C91

FORK

CLEVIS

1шт.

16

700133954

SUPPORT

- throttle

1шт.

17

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

18

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

19

700715546

JOINT

BALL JOINT - overtravel

1шт.

20

700133953

ARM

- throttle

1шт.

21

425-114

NUT,1/4"-28, G5

1шт.

22

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

3шт.

23

700133969

SPACER

1шт.

24

7772155

BOLT

M6 X 1.0 X 16 C

2шт.

25

700715382

HOSE

- fuel

1шт.

26

700715569

CONDUIT

- split

1шт.

27

700715389

FITTING

BARB - beaded hose

1шт.

28

700715390

VALVE

- shutoff

1шт.

29

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- pipe

1шт.

30

844480

FELT

- liner

2шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

32

700115716

SECURING STRAP

STRAP - fuel tank

2шт.

33

700707015

TANK

- fuel

1шт.

34

844498

FELT

- liner

2шт.

35

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

36

7746662

INSERT

HOSE END - fuel

1шт.

37

700715568

CONDUIT

- split

1шт.
