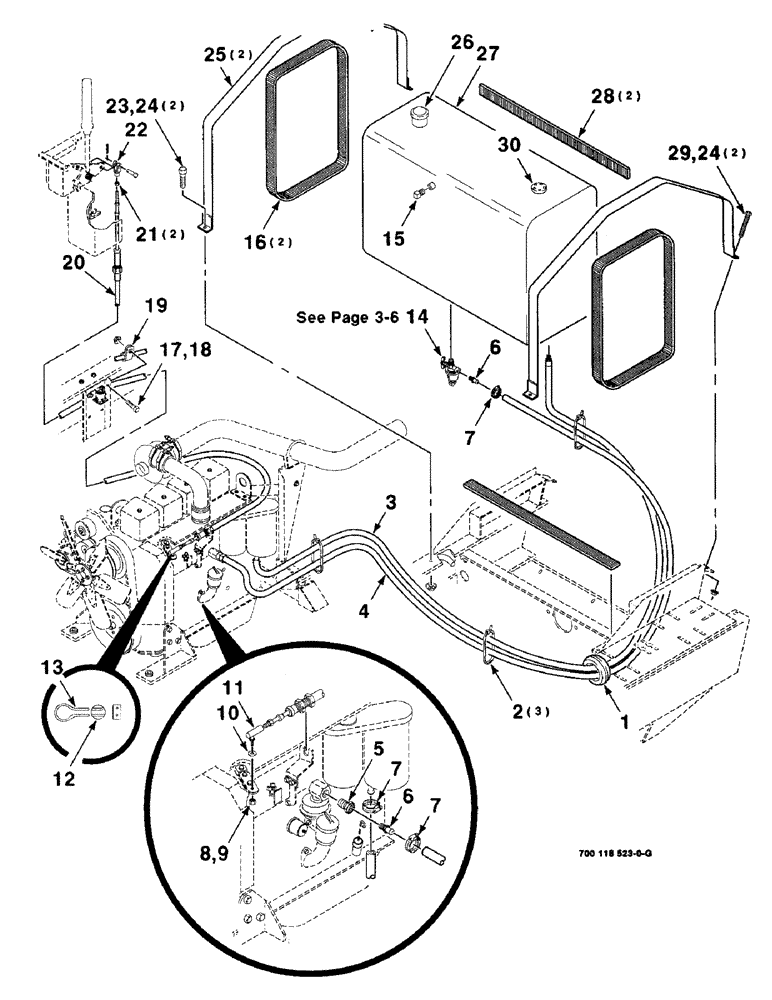

Запчасти Case IH 8850 (03-02) - FUEL TANK ASSEMBLY, SERIAL NUMBER CFH0099001 THRU CFH0099164 (03) - FUEL SYSTEM

1

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

3

700708559

FUEL HOSE,4.76 mm ID x 1600.00 mm, SAE 30R2 Type1

4.76 mm ID x 1600.00 mm, SAE 30R2 Type1

1шт.

4

700115723

FUEL HOSE,0.31" ID x 88.58", SAE 30R9

FLEXIBLE HOSE , Fuel 0.31" ID x 88.58", SAE 30R9

1шт.

5

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

6

7746662

INSERT

HOSE - end, fuel

2шт.

7

7721020

HOSE CLAMP

CLAMP

3шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

425-114

NUT,1/4"-28, G5

1шт.

10

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

1шт.

11

A76747

BALL JOINT,#10 -32 x 7/8" L

ASSEMBLY - bail

1шт.

12

8041014

LEAD SEAL

SEAL - lead

1шт.

13

7721434

RETAINING WIRE

WIRE - seal

1шт.

14

A30049

STRAINER ELEMENT

STRAINER - fuel

1шт.

15

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- pipe

1шт.

16

844480

FELT

- liner

2шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

19

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

20

700708549

CABLE

1шт.

21

225-14210

NUT,#10-32

2шт.

22

356174C91

FORK

CLEVIS

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

231-5146

FLANGE NUT,3/8"-16

4шт.

25

700115716

SECURING STRAP

STRAP - fuel tank

2шт.

26

700708089

CAP

- fuel, tank

1шт.

27

700707015

TANK

- fuel (Includes items 26 & 30)

1шт.

28

844498

FELT

- liner

2шт.

29

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

30

700707298

SENDER UNIT

SENDING UNIT

1шт.
