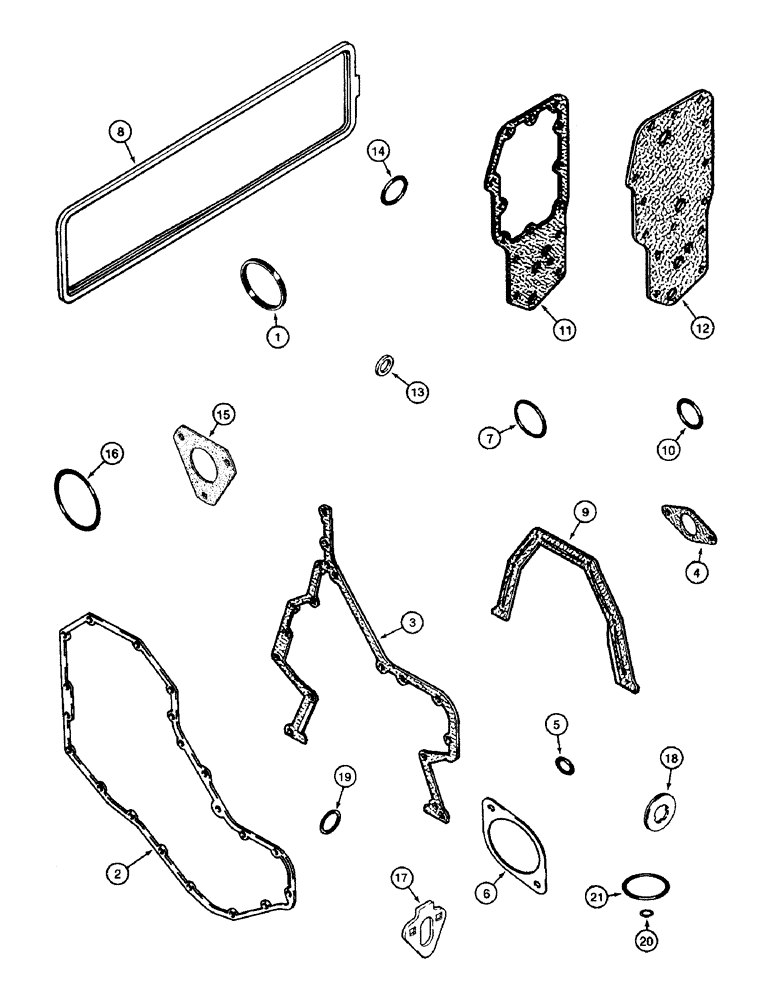

Запчасти Case IH 8850 (10-78) - GASKET KIT, SERIAL NUMBER CFH0099165 AND LATER, CYLINDER BLOCK (02) - ENGINE

A77861

GASKET KIT

KIT - gasket, cylinder block

1шт.

For complete engine overhaul, order (1) each of valve grind kit, page 2-49B, cylinder block kit, oil pan kit, page 2-31B, front and rear crankshaft seal kit, page 2-43B and required cylinder head gasket, page 2-33B.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

2

J914385

GASKET,1.02mm Thk

- front cover

1шт.

3

J916131

GASKET

- gear housing

1шт.

4

J905595

GASKET

- timing pin housing

1шт.

5

J913994

O-RING

- sealing

1шт.

6

J929751

GASKET

- access cover plate

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

8

J928832

GASKET

- tappet cover

1шт.

9

J928493

GASKET

- rear cover retainer

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

11

J929791

GASKET

- oil cooler core

1шт.

12

J929792

GASKET,1.2mm Thk

- filter head

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 1-1/2 inch (38 mm) ID, engine oil filler

1шт.

15

J914389

GASKET

- pump mounting

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block

1шт.

17

J923054

GASKET

- mounting, fuel transfer pump

1шт.

18

J928759

SEALING WASHER

- cover bolt, push rod

6шт.

19

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

20

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

21

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.
