(10-64) - FLYWHEEL, SERIAL NUMBER CFH0099001 THRU CFH0099164

Запчасти Case IH 8850 (10-64) - FLYWHEEL, SERIAL NUMBER CFH0099001 THRU CFH0099164 (02) - ENGINE

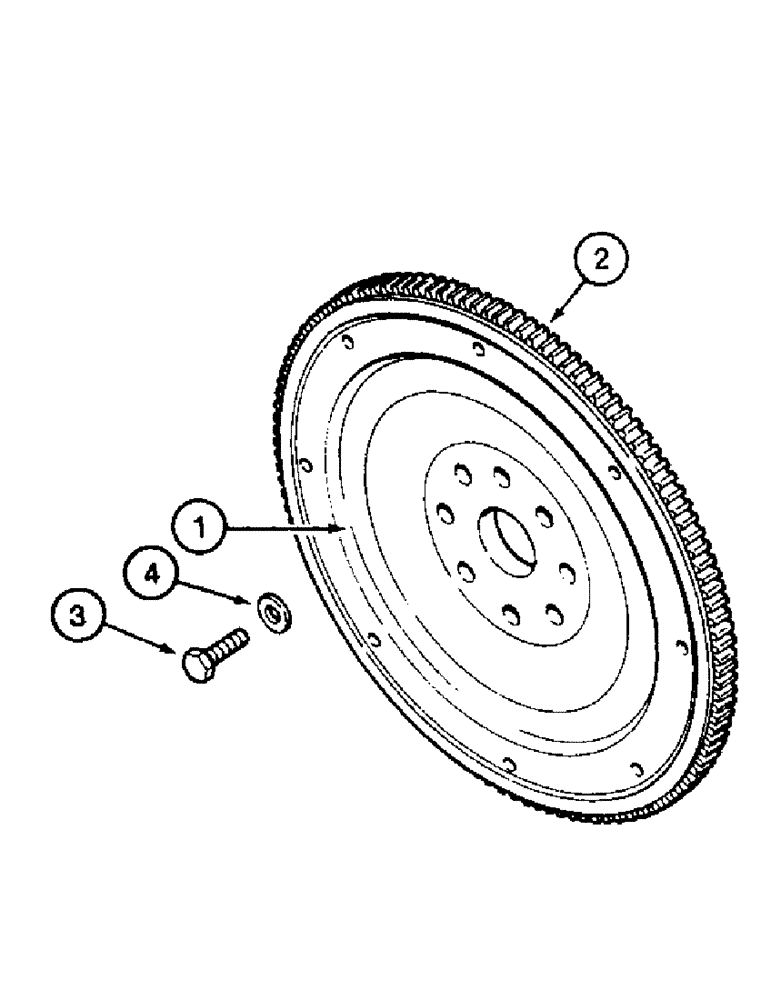

Схема запчастей Case IH 8850 - (10-64) - FLYWHEEL, SERIAL NUMBER CFH0099001 THRU CFH0099164 (02) - ENGINE
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J910284

FLYWHEEL

ASSEMBLY - engine

1шт.

2

J901774

GEAR,Flywheel

GEAR - ring, flywheel

1шт.

3

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.
