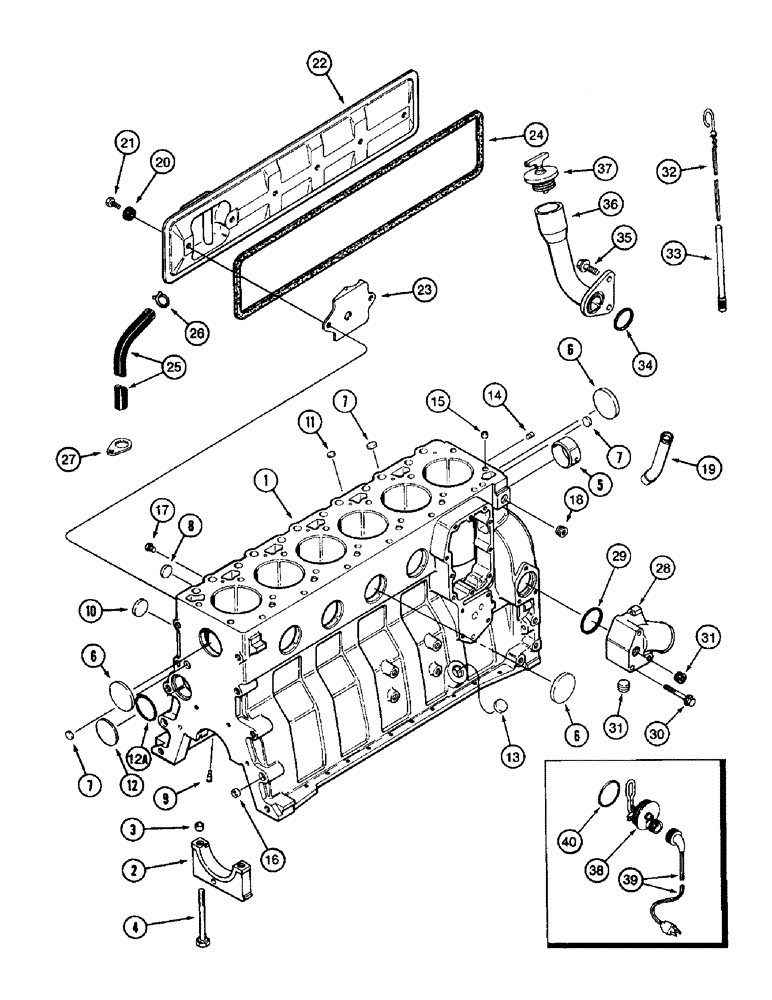

Запчасти Case IH 8850 (10-56) - CYLINDER BLOCK, SERIAL NUMBER CFH0099165 AND LATER (02) - ENGINE

138067A1

ENGINE ASSEMBLY - 6T-590 Emissions Certified, complete, for service order 246148A1 basic engine below

1шт.

The engine part number is stamped on a metal tag, which is mounted on the front gear cover.

1шт.

246148A1R

ENGINE, EXCHANGE

ENGINE ASSEMBLY - basic, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

246148A1C

CORE-ENGINE

RETURN NUMBER - use this part number to return core for credit when using a remanufactured assembly

1шт.

246148A1

BASIC ENGINE

ASSEMBLY, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbocharger and belt tensioner

1шт.

AR77867

ENGINE

BLOCK ASSEMBLY - short, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

AC77867

ENGINE ASSEMBLY

RETURN NUMBER - use this part number to return short block core for credit when using a remanufactured assembly

1шт.

1

A77867

MOTOR

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see page 2-37B, item 2

1шт.

6

A77782

PLUG

- expansion, 58 mm OD

6шт.

7

J900956

PLUG

- expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

4шт.

9

J930139

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

- expansion, 32 mm OD

1шт.

11

J900955

PLUG

- expansion, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

- expansion, Welch, 60 mm OD

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

- sealing, 57 mm ID

1шт.

13

J920706

PLUG

- expansion, 22 mm OD, not used in this application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

18

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

PLUG, DRAIN, Sq Soc, 1/2"-14, NTPF

1шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

20

J900267

SEAL

- cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

4шт.

22

J927913

COVER

- tappet

1шт.

23

J907586

BAFFLE

- tappet cover, use with J823494 sealant, see below

1шт.

24

J928832

GASKET

- tappet cover

1шт.

25

J918614

TUBE,435.00 mm

- 635 mm (25 inch) long

1шт.

26

J904230

CLAMP,25.4mm

- spring, hose

1шт.

27

J909670

CLIP

- retaining

1шт.

28

J903102

CONNECTION

- water inlet

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

31

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

32

J905786

DIPSTICK

- engine oil

1шт.

33

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick, oil

1шт.

34

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 1-1/2 inch (38 mm) ID

1шт.

35

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

36

J905440

TUBE

- oil fill

1шт.

37

A77424

FILLER CAP

CAP - oil fill tube

1шт.

196803A1

KIT

- engine block heater

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT - engine block heater, 120 volt, 750 watt ENGINE BLOCK HEATER

1шт.

39

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

40

J910517

O-RING

- heater sealing ENGINE BLOCK HEATER

1шт.

J823494

SEALANT

Three Bond Silver RTV Adhesive/Sealer, 3 ounce tube, used with Ref. 23

1шт.
