(10-42) - CYLINDER HEAD COVER, SERIAL NUMBER CFH0099165 AND LATER, THERMOSTAT AND HOUSING

Запчасти Case IH 8850 (10-42) - CYLINDER HEAD COVER, SERIAL NUMBER CFH0099165 AND LATER, THERMOSTAT AND HOUSING (02) - ENGINE

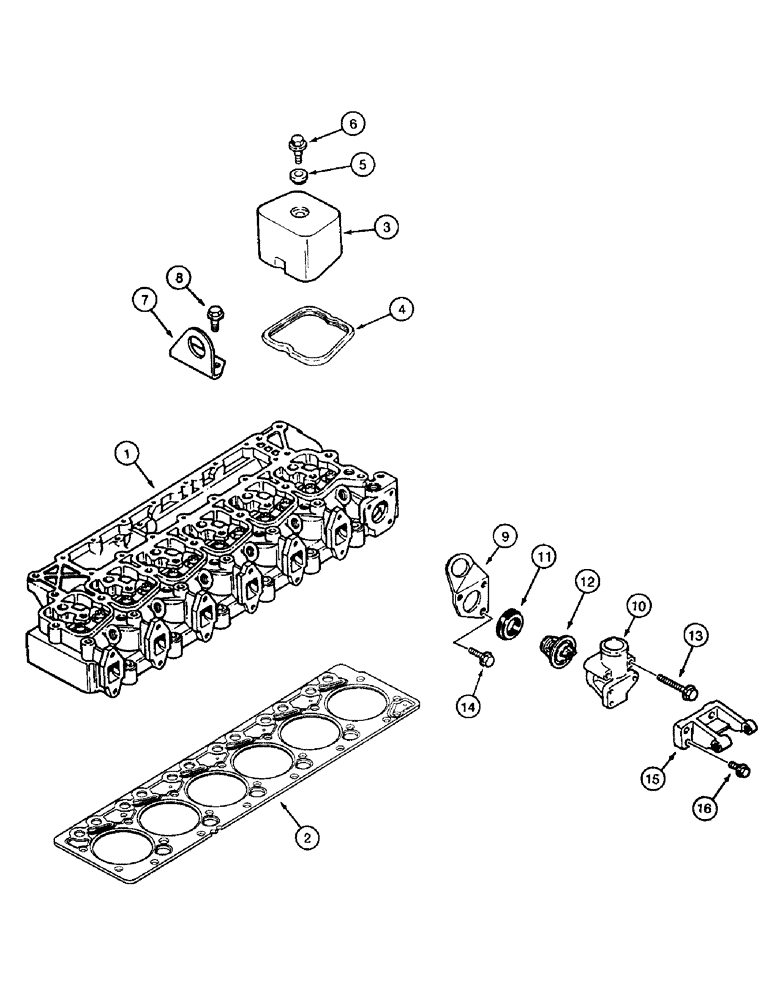

Схема запчастей Case IH 8850 - (10-42) - CYLINDER HEAD COVER, SERIAL NUMBER CFH0099165 AND LATER, THERMOSTAT AND HOUSING (02) - ENGINE
12
8
2
13
14
3
5
15
16
11
7
4
10
9
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD - cylinder, see page 2-35B for correct cylinder head and parts list

1шт.

2

J282805

GASKET

- head, standard

1шт.

2

J283000

GASKET

- head, 1 notch, 0.25 mm overthick

1шт.

2

J283002

GASKET

- head, 2 notches, 0.50 mm overthick

1шт.

3

J928404

COVER

- rocker arm

6шт.

4

J930906

GASKET

SEAL - rocker arm cover

6шт.

5

J928406

ISOLATOR

- noise

6шт.

6

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 30 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front THERMOSTAT AND HOUSING

1шт.

10

J914409

HOUSING

- thermostat THERMOSTAT AND HOUSING

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat THERMOSTAT AND HOUSING

1шт.

11

J923331

GASKET

- thermostat housing THERMOSTAT AND HOUSING

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant THERMOSTAT AND HOUSING

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

15

J923387

SUPPORT

- alternator mounting THERMOSTAT AND HOUSING

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.
