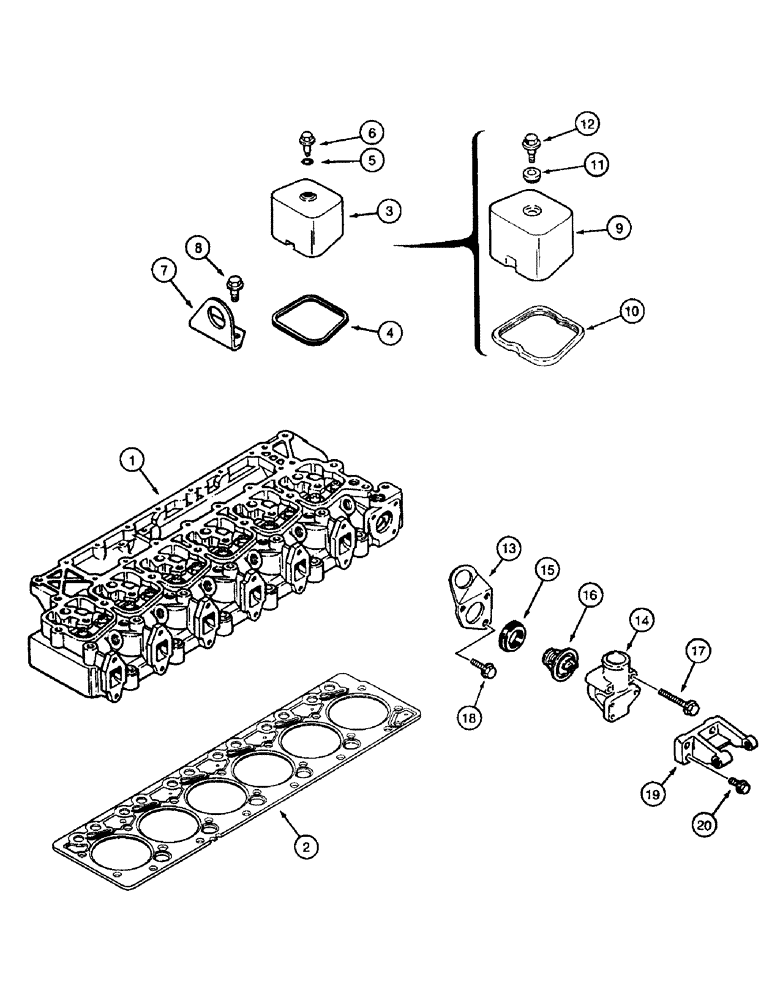

Запчасти Case IH 8850 (10-40) - CYLINDER HEAD COVER, SERIAL NUMBER CFH0099001 THRU CFH0099164, THERMOSTAT AND HOUSING (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see page 2-35 for correct cylinder head and parts list

1шт.

2

J282805

GASKET

- head, standard, replaces J921394 gasket

1шт.

2

J283000

GASKET

- head, 1 notch, 0.25 mm overthick, replaces J921396 gasket

1шт.

2

J283002

GASKET

- head, 2 notches, 0.50 mm overthick, replaces J921398 gasket

1шт.

3

J902604

COVER

- rocker arm, if used

6шт.

4

J902666

GASKET

SEAL - rocker arm cover, if used

6шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, if used

6шт.

6

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

J928404

COVER

- rocker arm, if used

6шт.

10

J930906

GASKET

SEAL - rocker arm cover, if used

6шт.

11

J928406

ISOLATOR

- noise, if used

6шт.

12

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

13

J903757

BRACKET

- lifting, front THERMOSTAT AND HOUSING

1шт.

14

J914409

HOUSING

- thermostat THERMOSTAT AND HOUSING

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat THERMOSTAT AND HOUSING

1шт.

A77736

THERMOSTAT

GASKET - thermostat housing THERMOSTAT AND HOUSING

1шт.

16

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant THERMOSTAT AND HOUSING

1шт.

17

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT - heavy hex flange, 8 - 1.25 x 70 mm THERMOSTAT AND HOUSING

2шт.

18

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

19

J923387

SUPPORT

- alternator mounting THERMOSTAT AND HOUSING

1шт.

20

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.
