Запчасти Case IH 8850 (10-38) - OIL PUMP AND OIL PAN, SERIAL NUMBER CFH0099165 AND LATER (02) - ENGINE

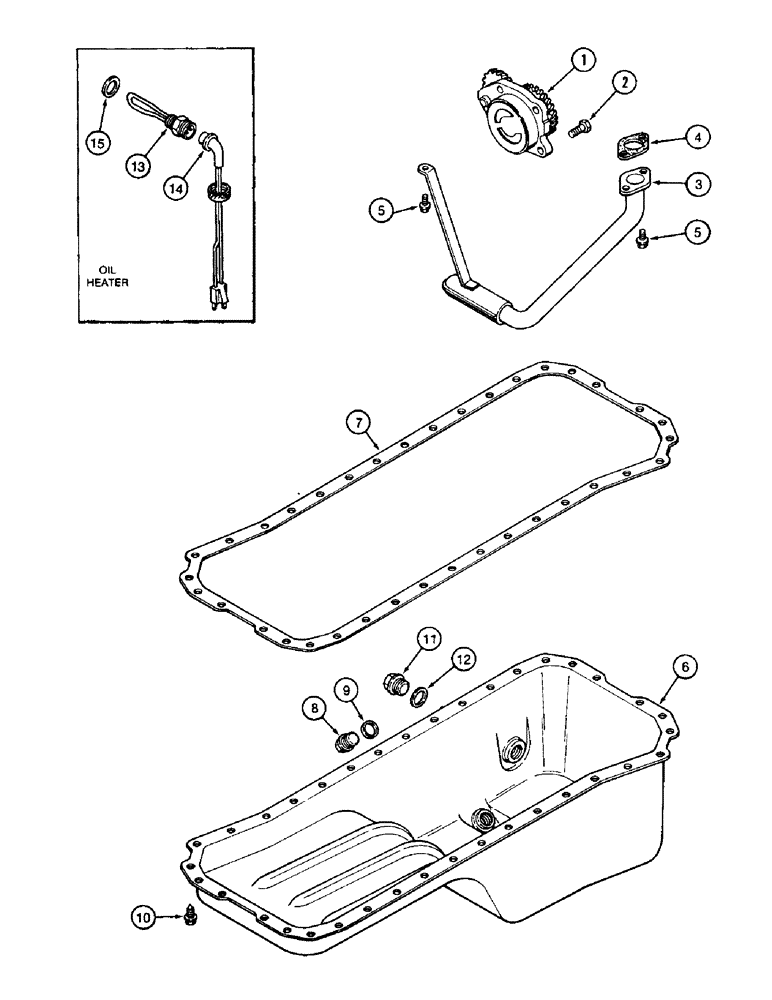

Схема запчастей Case IH 8850 - (10-38) - OIL PUMP AND OIL PAN, SERIAL NUMBER CFH0099165 AND LATER (02) - ENGINE
13
8
15
2
12
4
10
5
1
9
6
7
11
3
14
5

Артикул

Название

Примечание

Количество

JR930337

REMAN-ENG OIL PUMP

PUMP - oil, remanufactured, North America only, component parts on this page do not apply to the remanufactured assembly

1шт.

JC930337

PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J930337

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine, new

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J909373

TUBE

- with screen, oil suction

1шт.

4

J914383

GASKET

- mounting, oil suction tube

1шт.

Part of oil pan gasket kit, P/N A77676.

1шт.

5

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm

3шт.

6

J915703

PAN, ENGINE OIL

PAN - oil, engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77676 kit shown below

1шт.

Part of oil pan gasket kit, P/N A77676.

1шт.

8

J924147

PLUG,M18 x 1.5

- hex magnetic, special, 12 mm - 1.5

1шт.

9

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of oil pan gasket kit, P/N A77676.

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW, Hex, Flg Hd, M8 x 21, Spcl

36шт.

11

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

A77676

GASKET KIT

KIT - gasket, oil pan, includes items 4, 7 and 9

1шт.

A77490

KIT

- heater, engine oil

1шт.

When A77490 kit is ordered, Ref. 15, J902425 washer must also be ordered.

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt, 150 watt ENGINE OIL HEATER

1шт.

14

196466A1

ELECTRIC CABLE

CABLE - engine block heater ENGINE OIL HEATER

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug ENGINE OIL HEATER

1шт.

When A77490 kit is ordered, Ref. 15, J902425 washer must also be ordered.

1шт.

Выбрано товаров: 24
