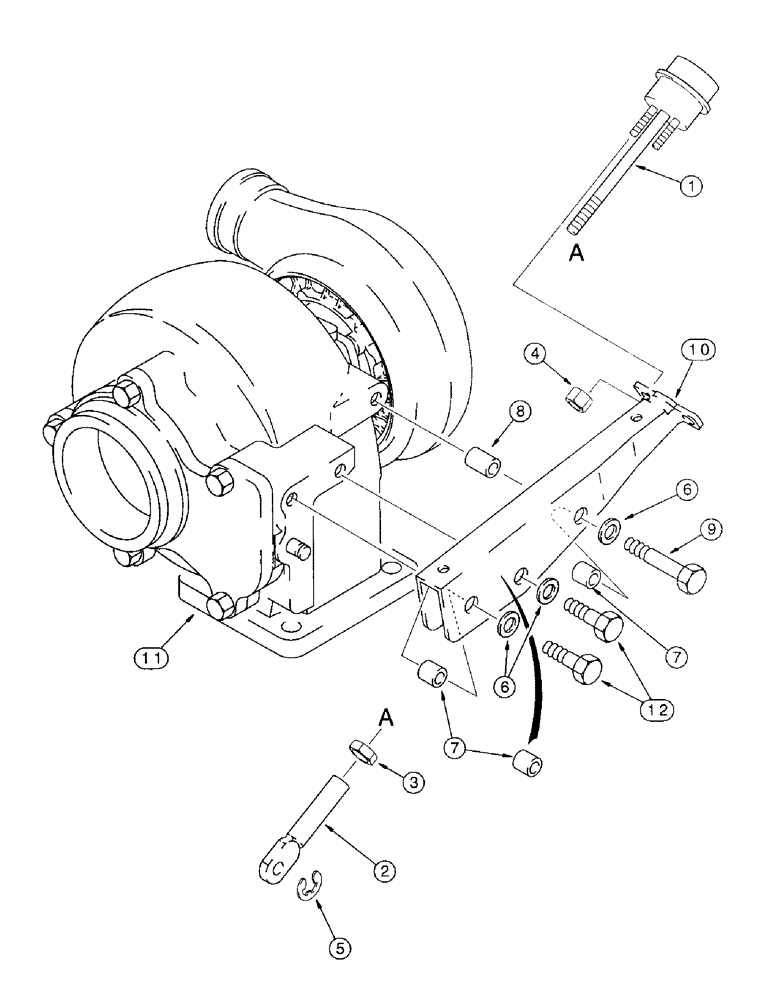

Запчасти Case IH 8850 (10-30) - WASTEGATE ACTUATOR, SERIAL NUMBER CFH0099165 AND LATER (02) - ENGINE

J536971

TURBOCHARGER

ASSEMBLY - engine, new, includes all parts shown below and on page 2-27B

1шт.

1

J531892

ACTUATOR

- turbo wastegate

1шт.

J531892C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.

2

J528177

LINK

- adjusting

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

4

J528204

LOCK NUT

- lock

2шт.

5

J528221

CIRCLIP

RING - retaining

1шт.

NSS

NOT SOLD SEPARAT

HOUSING - turbine and actuator bracket

1шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

- mounting, short, 13,6 mm

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

- mounting, long, 19 mm

1шт.

9

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

- hex, 8 - 1.25 x 55 mm

1шт.

10

J533328

SUPPORT

BRACKET - wastegate actuator

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

12

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.
