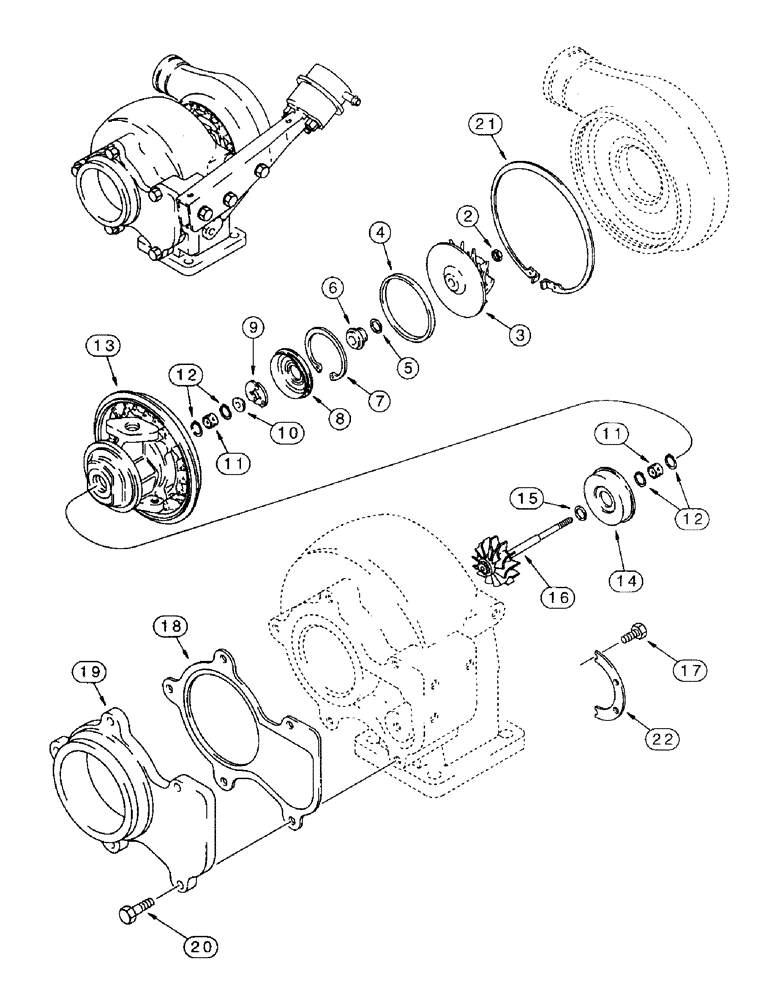

Запчасти Case IH 8850 (10-28) - TURBOCHARGER ASSEMBLY, SERIAL NUMBER CFH0099165 AND LATER (02) - ENGINE

1

J536971

TURBOCHARGER

ASSEMBLY - engine, new, includes all parts shown below and on page 2-27D

1шт.

1

JR536971

REMAN-TURBOCHARGER

Turbocharger Assembly engine, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1

JC536971

CORE-TURBOCHARGER

Return Part Number use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

J537817

HOUSING

CENTER HOUSING ASSEMBLY - turbocharger

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575169

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER - turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - o-ring

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575169

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575169

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575169

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575169

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turbocharger thrust

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575169

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - turbocharger

2шт.

Part of Overhaul, Turbocharger KIT, P/N J575169

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

Part of Overhaul, Turbocharger KIT, P/N J575169

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing turbine

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - turbine heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of Overhaul, Turbocharger KIT, P/N J575169

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT - turbocharger

1шт.

17

J759917

SET SCREW

SCREW - set, hex head

5шт.

Part of Overhaul, Turbocharger KIT, P/N J575169

1шт.

18

J535001

GASKET,0.25mm Thk

- adapter

1шт.

19

J527759

ADAPTER

- connection

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

5шт.

21

J533163

SNAP RING

RING - retaining

1шт.

J802767

TURBOCHARGER

KIT - turbocharger with gaskets, includes item 1, and one each of J709861 turbocharger mounting gasket and J519807 turbo oil drain tube gasket, not shown

1шт.

JR802767

REMAN-TURBOCHARGER

KIT - Remanufactured turbocharger with gaskets, includes JR536971 remanufactured turbocharger and one each of J919369 turbocharger mounting gasket and J928919 turbo oil drain tube gasket, not shown

1шт.

JC536971

CORE-TURBOCHARGER

Return Part Number

1шт.

22

J532637

PLATE

- clamping

2шт.

J575169

REPAIR KIT

KIT - overhaul, turbocharger, Includes: Refs. 2, 4, 5, 7-9, 11, 12, 15 and 17.

1шт.
