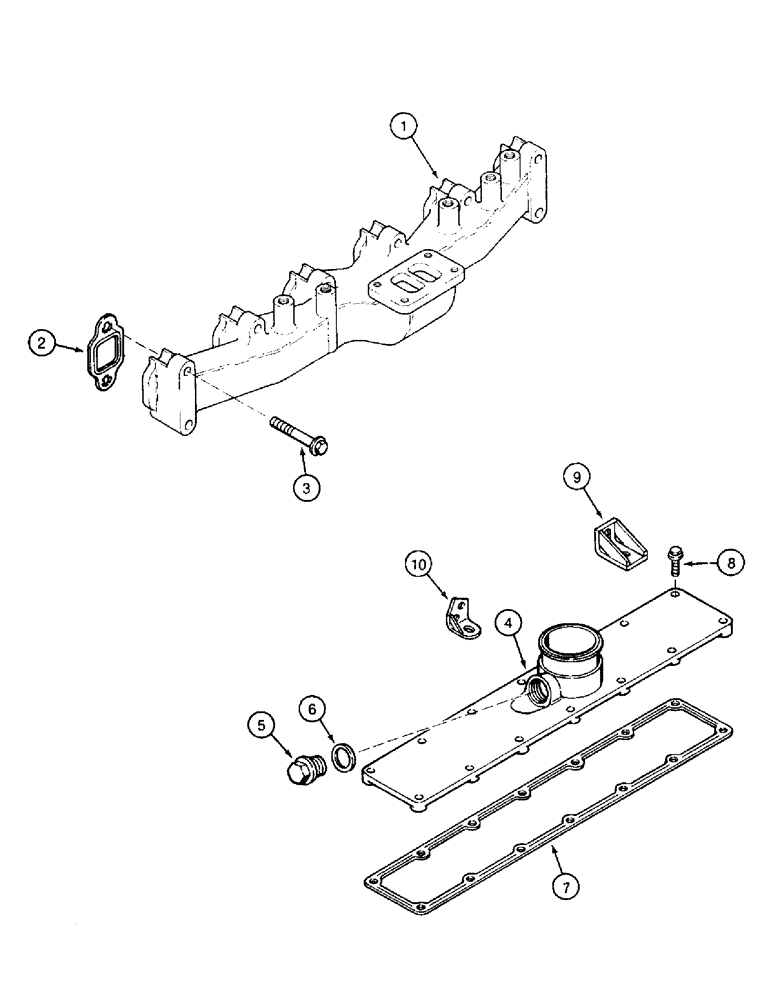

Запчасти Case IH 8850 (10-18) - EXHAUST AND INTAKE MANIFOLDS, SERIAL NUMBER CFH0099001 THRU CFH0099164 (02) - ENGINE

1

J902347

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

12шт.

A77418

KIT

- manifold, no longer available, order items 4 - 6

1шт.

4

J904862

COVER

- intake manifold

1шт.

5

J907185

PLUG

- manifold INTAKE MANIFOLD

1шт.

6

J906773

WASHER

- plug sealing INTAKE MANIFOLD

1шт.

7

J914029

GASKET

- mounting, intake cover NITAKE MANIFOLD

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake Manifold Hex Flg Hd, M8 x 1.25 x 25

14шт.

9

J917777

BRACE

- fuel tube, see page 3-8, item 19 INTAKE MANIFOLD

2шт.

10

J917778

BRACE

- fuel tube, see page 3-8, item 22 INTAKE MANIFOLD

1шт.
