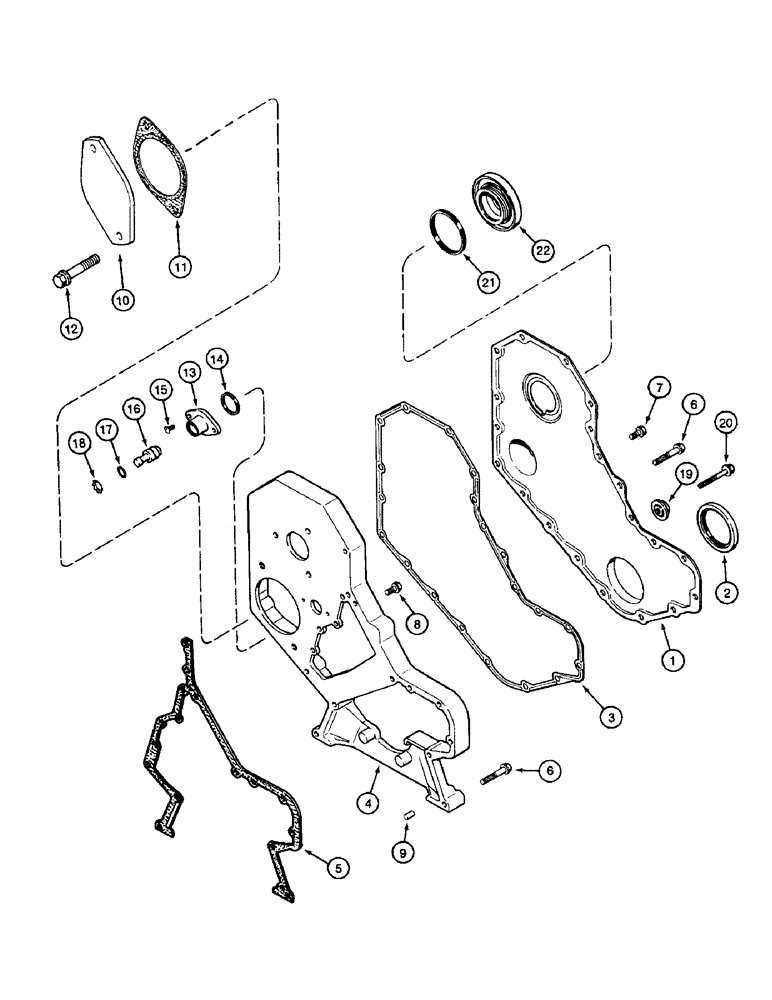

Запчасти Case IH 8850 (10-14) - FRONT GEAR COVER, SERIAL NUMBER CFH0099001 THRU CFH0099164 (02) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft, front, see page 2-42 for correct seal kit

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover

1шт.

4

J920758

HOUSING

- timing gear

1шт.

5

J916131

GASKET

- gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm (8) for front gear cover to timing gear housing to engine block and (2) for timing gear housing to engine block

10шт.

7

J924962

FLANGE BOLT

BOLT - hex flange, special, 8 - 1.25 x 16 mm, front gear cover to timing gear housing

11шт.

8

J924962

FLANGE BOLT

BOLT - hex flange, special, 8 - 1.25 x 16 mm, timing gear housing to engine block

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

10

J914868

COVER

PLATE - access cover, flat

1шт.

11

J929751

GASKET

- access cover plate, replaces J919601 gasket

1шт.

12

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

13

J919683

HOUSING

- timing pin

1шт.

14

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

15

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

16

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

17

J913994

O-RING

- sealing

1шт.

18

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

19

J912772

RETAINER

- bolt

1шт.

20

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.

21

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, fuel pump drive gear

1шт.

22

J903463

PLUG,M63 x 5

- front access, fuel pump drive gear

1шт.
