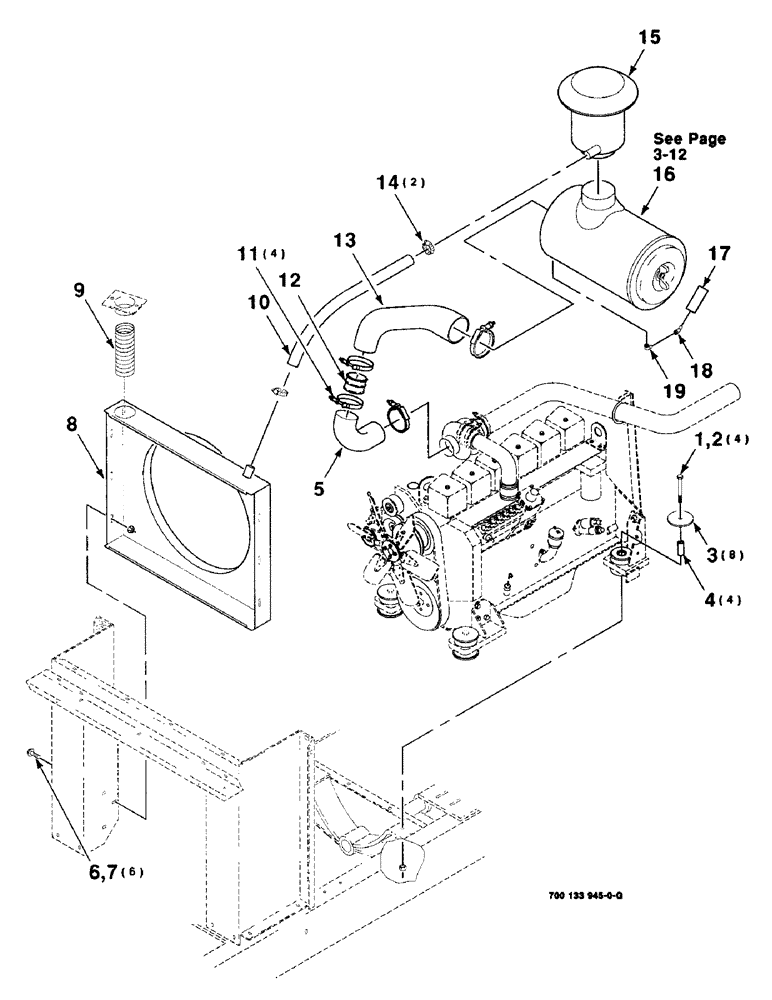

Запчасти Case IH 8850 (03-10) - AIR BREATHER AND EXHAUST ASSEMBLY, SERIAL NUMBER CFH0099165 AND LATER (02) - ENGINE

1

2700064

SCREW

1/2-13 X 4-1/2 C GR8

4шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

3

700130186

WASHER

8шт.

4

700129071

BUSHING

4шт.

5

700715208

HOSE

- air

1шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

8

700130647

SHROUD

WA - fan

1шт.

9

700709868

HOSE

- air, ducting

1шт.

10

700715373

INTAKE AIR HOSE,31.75 mm ID x 820.00 mm, SAE 20R1

- Precleaner 31.75 mm ID x 820.00 mm, SAE 20R1

1шт.

11

214-21118

CLAMP,#118, 4.56"-4.87", T-Bolt

- hose

4шт.

12

700715210

TUBE,101.6 mm OD, 76.2 mm Length

1шт.

13

700715209

HOSE

- air

1шт.

14

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, #20, 0.81/1.75 Type F Worm

2шт.

15

700713380

SCREW

PRE-CLEANER

1шт.

16

1541611C1

AIR CLEANER

CLEANER ASSEMBLY - air

1шт.

17

700707040

INDICATOR

- service

1шт.

18

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

19

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.
