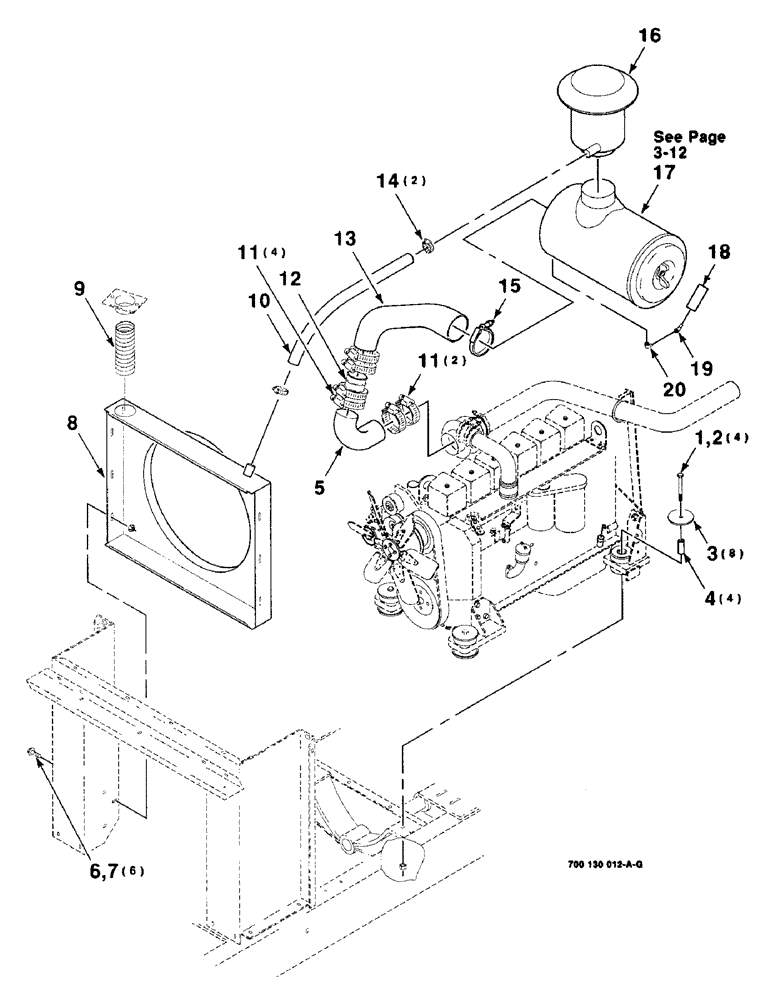

Запчасти Case IH 8850 (03-08) - AIR BREATHER AND EXHAUST ASSEMBLY, SERIAL NUMBER CFH0099001 THRU CFH0099164 (02) - ENGINE

1

2700064

SCREW

1/2-13 X 4-1/2 C GR 8

4шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

3

700130186

WASHER

8шт.

4

700129071

BUSHING

4шт.

5

700713383

INTAKE AIR HOSE,76.00 mm ID, SAE 20R4 Class D1

76.00 mm ID, SAE 20R4 Class D1

1шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

8

700130647

SHROUD

WA - fan

1шт.

9

700709868

HOSE

- air, ducting

1шт.

10

700713381

INTAKE AIR HOSE,31.75 mm ID x 740.00 mm, SAE 20R1

- Precleaner 31.75 mm ID x 740.00 mm, SAE 20R1

1шт.

11

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

CLAMP - hose

6шт.

12

700713938

PIPE,76.2 mm OD, 76 mm Length

TUBE

1шт.

13

700713382

INTAKE AIR HOSE,76.00 mm ID, 101.60 mm ID x 251.00 mm

76.00 mm ID, 101.60 mm ID x 251.00 mm

1шт.

14

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, #20, 0.81/1.75 Type F Worm

2шт.

15

214-21118

CLAMP,#118, 4.56"-4.87", T-Bolt

- hose

1шт.

16

700713380

SCREW

PRE-CLEANER

1шт.

17

1541611C1

AIR CLEANER

CLEANER ASSEMBLY - air

1шт.

18

700707040

INDICATOR

- service

1шт.

19

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

20

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.
