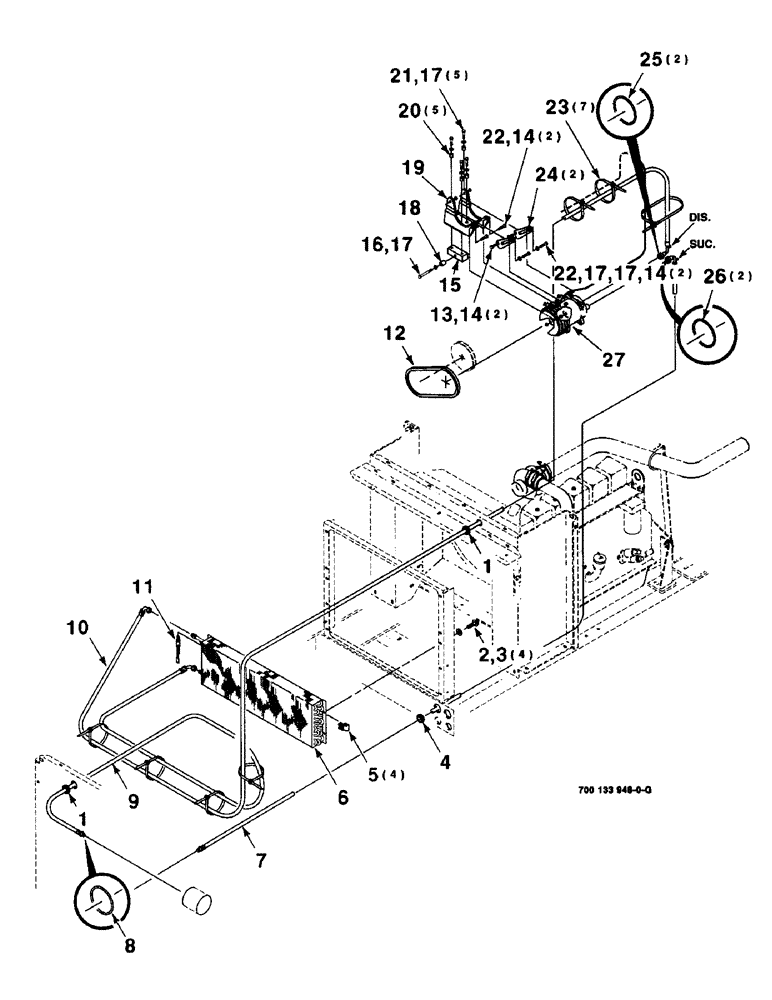

Запчасти Case IH 8850 (02-18) - CONDENSER- COMPRESSOR ASSEMBLY, SERIAL NUMBER CFH0099165 AND LATER (02) - ENGINE

1

248-2152

GROMMET,1" ID x 1 3/8" Groove Dia

2шт.

2

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

3

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

4

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

5

74807

NUT

1/4-20 SPEED NUT

4шт.

6

700713364

CONDENSER

1шт.

7

700713318

HOSE

ASSEMBLY (Includes item 26)

1шт.

8

700712717

O-RING

1шт.

9

700712708

HOSE

ASSEMBLY (Includes item 8)

1шт.

10

700713320

HOSE

ASSEMBLY (Includes item 25)

1шт.

11

700713314

SWITCH

- high pressure

1шт.

12

700715387

V-BELT,1016 mm L

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

14

832-41310

NUT,M10 x 1.5, Cl 10

NUT, LOCK, M10 x 1.5, Cl 10

6шт.

15

700133962

BLOCK

- support

1шт.

16

700715074

BOLT

M10 X 1.5 X 80 C C10.9

1шт.

18

6176002

SPACER

1шт.

19

700133957

SUPPORT

WA - compressor

1шт.

20

6856512

SPACER

5шт.

21

700715073

BOLT

M10 X 1.5 X 40 C C10.9

5шт.

22

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

24

700133956

STRAP

- adjust

2шт.

25

700712718

O-RING

2шт.

26

31-1809

O-RING

2шт.

27

1999755C2

COMPRESSOR

- A/C

1шт.

27

86993462R

REMAN-COMPRESSOR

8850 SERIAL NUMBER CFH0099165 AND LATER; Reman For New P/N 1999755C2

1шт.

27

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

27

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

27

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

27

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

27

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.
