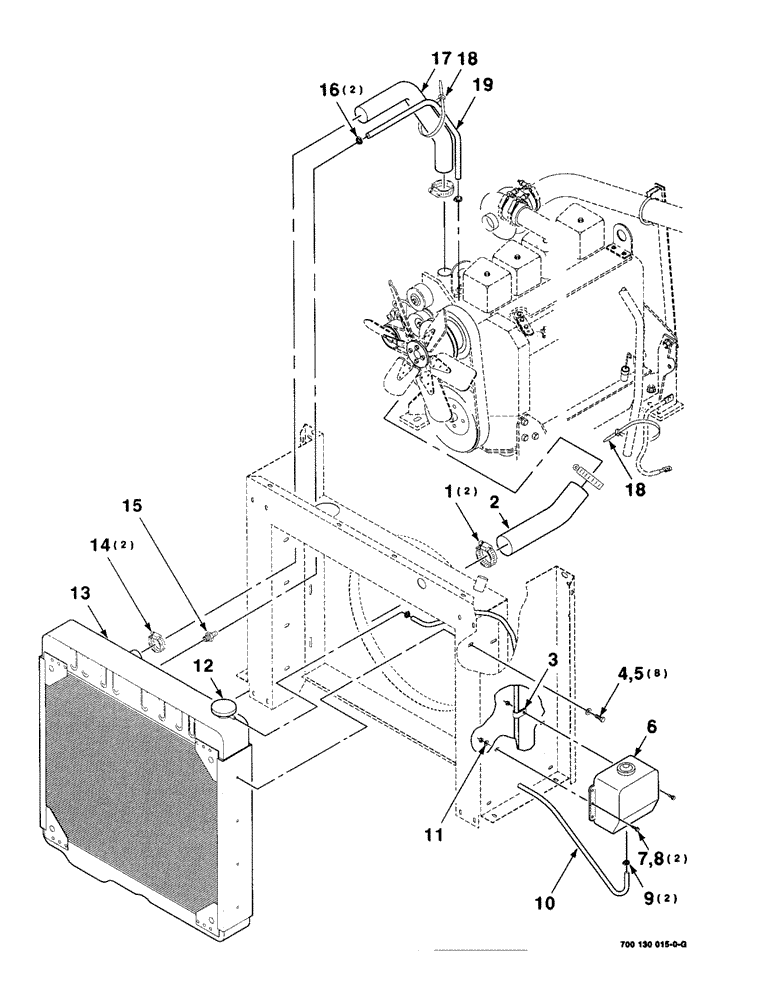

Запчасти Case IH 8850 (02-14) - RADIATOR ASSEMBLY (02) - ENGINE

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, #44, 2.31/3.25 Type F Worm

2шт.

2

700713371

RADIATOR HOSE,57.15 mm ID x 326,53 mm, SAE 20R4 CLASS D1

Lower 57.15 mm ID x 326,53 mm, SAE 20R4 CLASS D1

1шт.

3

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

6

700705626

TANK

- overflow

1шт.

7

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

8

425-104

NUT,1/4"-20, Cl 5

2шт.

9

7721020

HOSE CLAMP

CLAMP - hose

2шт.

10

2400028

HOSE,0.31" ID x 48.03", SAE 30R1

drain 0.31" ID x 48.03", SAE 30R1

1шт.

11

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

1шт.

12

700708265

CAP

1шт.

13

700713369

RADIATOR

(Includes item 12)

1шт.

14

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, #32, 1.56/2.50 Type F Worm

2шт.

15

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

INSERT - NPTF solid male

1шт.

16

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

2шт.

17

700713372

RADIATOR HOSE,44.45 mm ID x 173,278,102 mm, SAE 20R4 CLASS D1

Upper 44.45 mm ID x 173,278,102 mm, SAE 20R4 CLASS D1

1шт.

18

306132C1

CABLE TIE,14.5" L

14" TIE

2шт.

19

700713373

HOSE,0.38" ID x 22.05", SAE 20R3 Class D2, SAE J20

Overflow 0.38" ID x 22.05", SAE 20R3 Class D2, SAE J20

1шт.
