Запчасти Case IH 8850 (02-10) - ENGINE ASSEMBLY, MOUNT AND REAR DRIVE, SERIAL NUMBER CFH0099165 AND LATER (02) - ENGINE

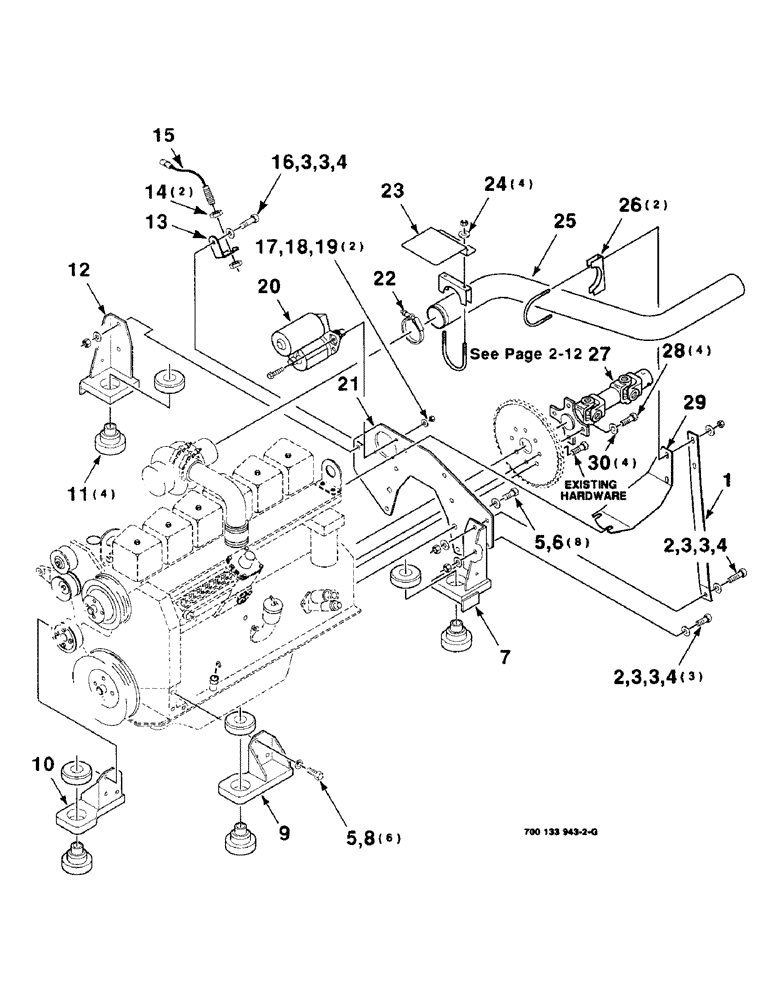

Схема запчастей Case IH 8850 - (02-10) - ENGINE ASSEMBLY, MOUNT AND REAR DRIVE, SERIAL NUMBER CFH0099165 AND LATER (02) - ENGINE
8
7
4
23
6
18
26
30
3
1
2
3
5
15
10
2
3
4
13
9
17
3
28
20
24
27
19
11
21
12
29
3
14
16
4
5
22
3
25

Артикул

Название

Примечание

Количество

1

700130107

STRAP

STRAP

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

3

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

10шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

5

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 35, 10.9, Full Thd

14шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

WASHER, M13.5 x 24 x 2.5

8шт.

7

700130110

MOUNTING PARTS

MTG WA - lt, rear

1шт.

8

892-10012

LOCK WASHER,M12

LOCK WASHER, M12

6шт.

9

700130108

MOUNTING PARTS

MOUNTING WA - left

1шт.

10

700130109

MOUNTING PARTS

MOUNTING WA - right

1шт.

11

700713434

MOUNTING PARTS

MOUNT - motor

4шт.

12

700130111

MOUNTING PARTS

MTG WA - rt, rear

1шт.

13

700130028

ANGLE

ANGLE

1шт.

14

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 J GR2

2шт.

15

700706398

SENSOR

SENSOR - PTO

1шт.

16

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

BOLT, Hex, 1/2"-13 x 2 1/4", G5

1шт.

17

7771728

SCREW

M10 X 1.5 X 40 C

2шт.

19

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

2шт.

20

1987559C1

STARTING MOTOR

STARTER

1шт.

20

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt, 2.5KW

1шт.

20

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

20

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

20

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

21

700117898

LARGE PLATE

PLATE, LARGE PLATE - rear

1шт.

22

700708544

CLAMP

CLAMP - T bolt

1шт.

23

700117857

SHIELD

SHIELD

1шт.

24

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

25

700713939

PIPE

PIPE - exhaust

1шт.

26

722769

CLAMP

CLAMP - exhaust

2шт.

27

700713374

YOKE

UNIVERSAL JOINT YOKE U-JOINT ASSEMBLY

1шт.

28

700708551

CAPSCREW,M12 x 1.25 x 40mm, Cl 12.9

M12 X 1.25 X 40 C, C12.9

4шт.

29

700133955

SUPPORT

SUPPORT

1шт.

30

700708548

WASHER

WASHER - hardened

4шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER, M10 x 20 x 2

2шт.

Выбрано товаров: 34
