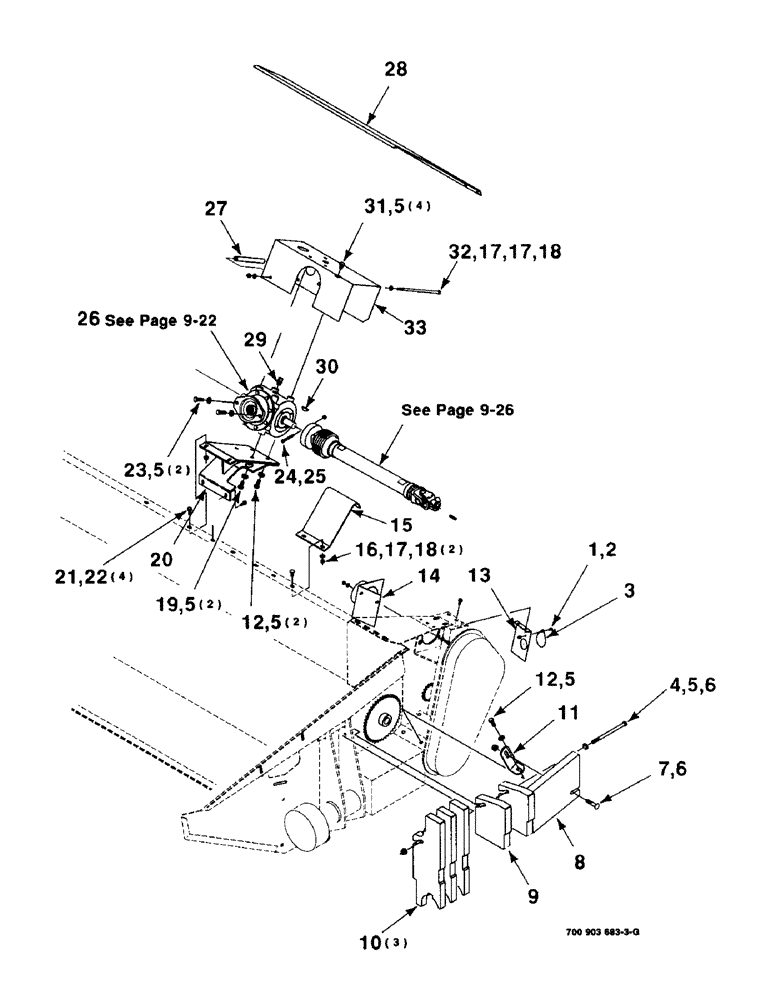

Запчасти Case IH 8850 (09-20) - 8840 AUGER HEADER ADAPTER KIT (09) - CHASSIS

1

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

2

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

3

700130970

COVER

1шт.

4

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

1/2-13 X 8 GR 5 ZND.

1шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

12шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

7

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 X 2-1/2 RHSNB

1шт.

8

700130661

WEIGHT

WA

2шт.

9

700130660

WEIGHT

1шт.

10

700130659

WEIGHT

3шт.

11

700130663

SUPPORT

ANGLE - weight

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

13

700130957

SHIELD

WA

1шт.

14

700130953

SHIELD

WA

1шт.

15

700130964

SUPPORT

- hose, left

1шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

17

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

18

425-106

NUT,3/8"-16, Cl 5

3шт.

19

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

20

700130942

SUPPORT

WA, gearbox

1шт.

21

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

24

703769

SCREW

5/16-18 X 2 3/4 C

1шт.

25

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

26

700714719

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

27

700130965

SPACER

1шт.

28

700130672

SHIELD

- left

1шт.

29

700712886

BREATHER

1шт.

30

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

31

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 X 3/4 C

4шт.

32

413-6144

BOLT,Hex, 3/8" - 16 x 9", Gr 5

3/8-16 X 9 B

1шт.

33

700130961

SHIELD

WA - left

1шт.
