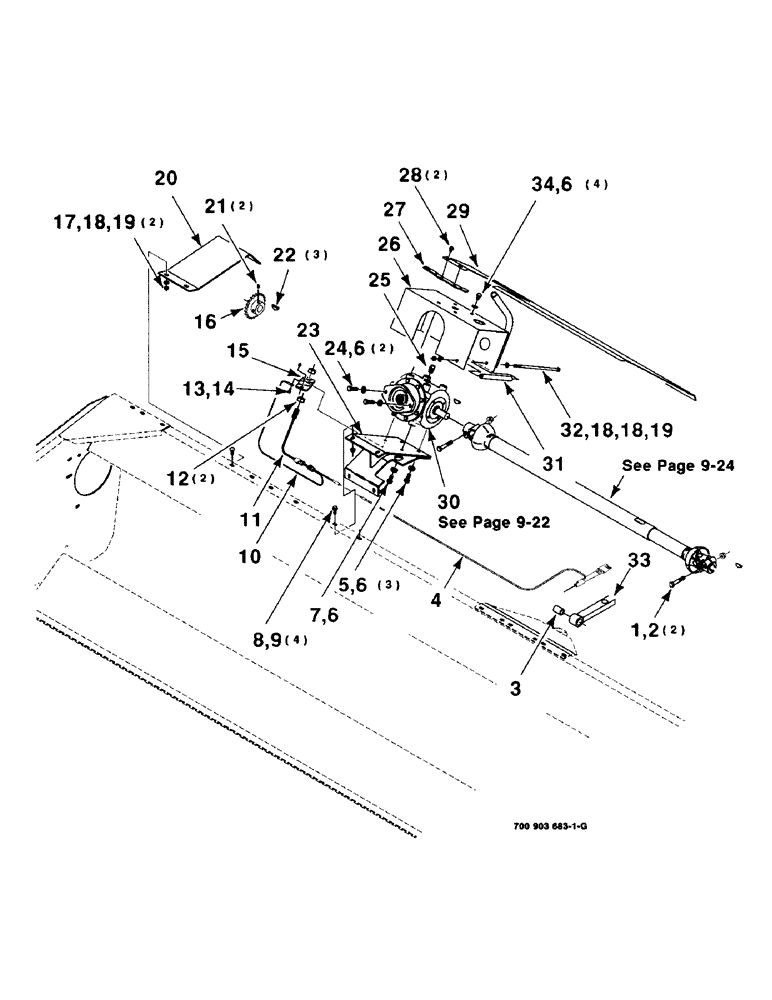

Запчасти Case IH 8850 (09-18) - 8840 AUGER HEADER ADAPTER KIT (09) - CHASSIS

1

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

2шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

3

700114925

BUSHING

1шт.

4

700714908

HARNESS

- flasher

1шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

10шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

10

700715040

HARNESS

- header speed

1шт.

11

700706398

SENSOR

PTO SENSOR

1шт.

12

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 HJN GR2

2шт.

13

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

15

700130941

STRAP

- sensor

1шт.

16

700130940

SPROCKET ASSY.

SPROCKET WA - 50B22

1шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

19

425-106

NUT,3/8"-16, Cl 5

3шт.

20

700130966

SUPPORT

- hose, right

1шт.

21

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

3/8-16 X 3/8 CPHSSS

2шт.

22

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

3шт.

23

700130942

SUPPORT

WA, gearbox

1шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

25

700712886

BREATHER

1шт.

26

700130949

SHIELD

WA - right

1шт.

27

700130967

STRAP

WA - shield

1шт.

28

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

29

700130673

SHIELD

- right

1шт.

30

700714719

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

31

700130965

SPACER

1шт.

32

413-6144

BOLT,Hex, 3/8" - 16 x 9", Gr 5

3/8-16 X 9 B

1шт.

33

700130946

ARM

WA

1шт.

34

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 X 3/4 C

4шт.
