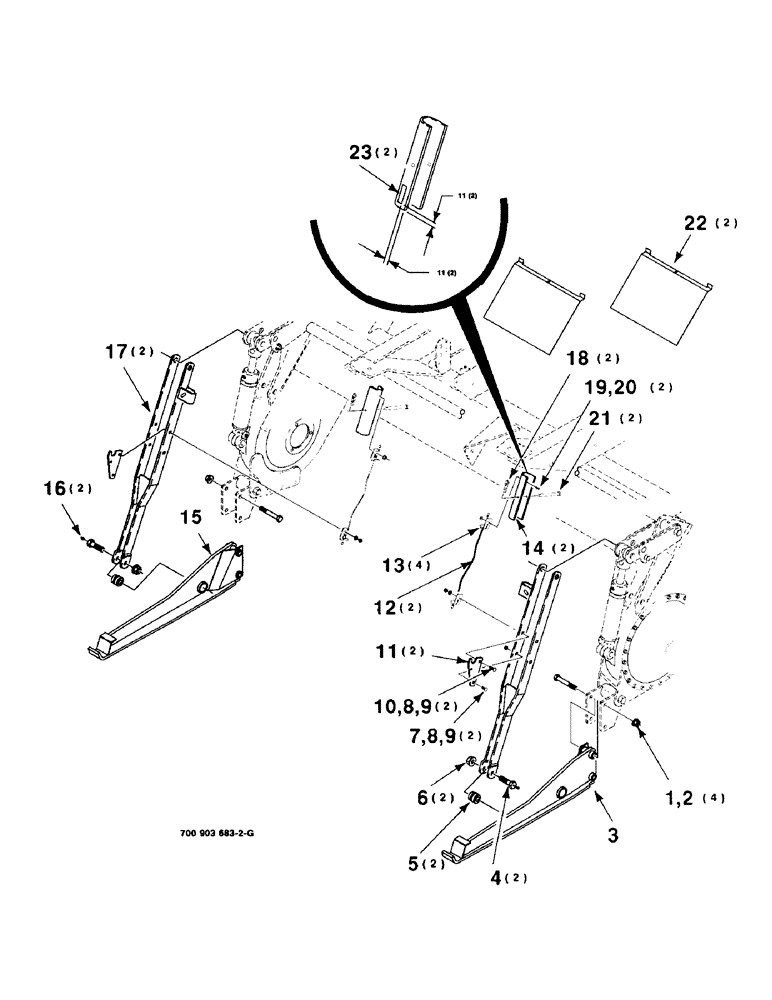

Запчасти Case IH 8850 (09-16) - 8840 AUGER HEADER ADAPTER KIT, HK60845 8840 AUGER HEADER ADAPTER KIT COMPLETE (09) - CHASSIS

1

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

2

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

4шт.

3

700130664

ARM

WA - lift, left

1шт.

4

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

7/8-9 X 3 SCREW - special

2шт.

5

700121583

SPACER

- link lift

2шт.

6

232-53114

FLANGE NUT,Flg, 7/8"-9

7/8-9 HFTLN GR/G

2шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

11

700110905

PLATE

- hanger

2шт.

12

700706805

CABLE

- stop

2шт.

13

700114675

ANCHOR

- stop

4шт.

14

6251292

STOP

- safety

2шт.

15

700130670

LADDER

ARM WA - lift, right

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

17

700121586

LINK

WA

2шт.

18

T54573

PIN

.120 WIRE HAIR PIN COTTER

2шт.

19

706176

SCREW

5/16-18 X 3/4 CRTHMS

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

21

427-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 X 2-1/8 CLEVIS PIN

2шт.

22

700122709

FLAP

2шт.

23

700706023

DECAL

- safety stop

2шт.
