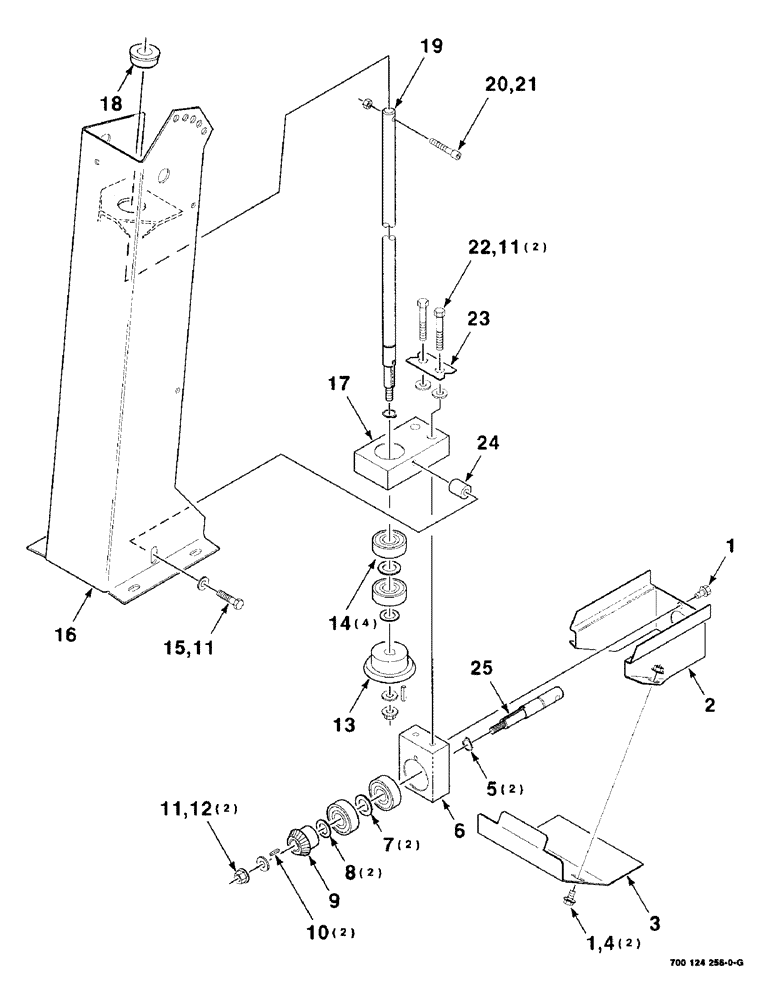

Запчасти Case IH 8850 (09-08) - STEERING RATIO SPEED-UP KIT, HK60633 STEERING RATIO SPEED UP KIT COMPLETE (09) - CHASSIS

HK60633

KIT

STEERING RATIO SPEED-UP KIT COMPLETE

1шт.

1

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

2

700124267

COVER

1шт.

3

700124268

CAP

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, , GR/F Flg, USR, 5/16"-18

2шт.

5

100-1675

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

6

700124260

BEARING HOUSING

HOUSING - bearing

1шт.

7

52183

BUSHING

3/4 X 18 GAUGE NRMB

2шт.

8

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

2шт.

9

700711587

GEAR

- bevel

1шт.

10

61002

KEY

3/16 X 3/16 X 1 KEY

2шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

13

700711588

GEAR

- bevel

1шт.

14

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING - cylindrical

4шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

16

700124265

CHANNEL

WA - post

1шт.

17

700124259

BEARING HOUSING

HOUSING - bearing

1шт.

18

700705557

BUSHING

- flanged

1шт.

19

700124258

SHAFT

1шт.

20

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

5/16-18 X 1-1/2 HSHCS SPL

1шт.

21

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

23

700111558

LOCKING TAB

TAB - locking

1шт.

24

6562011

SPACER

1шт.

25

700124261

SHAFT

1шт.
