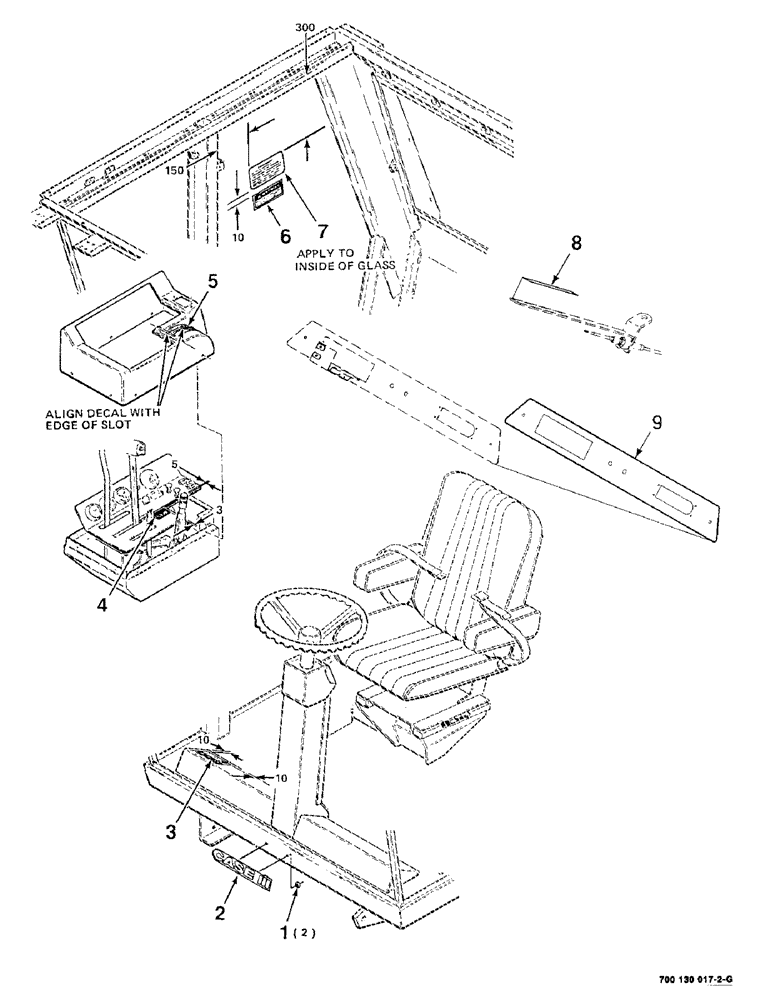

Запчасти Case IH 8850 (09-04) - DECALS AND LOCATION DIAGRAM (09) - CHASSIS

1

1324788C1

NUT

PALNUT SELF - threading nut

2шт.

2

186882A1

EMBLEM CASE/IH

MEDALLION - Case IH

1шт.

3

7178932

DECAL

- warning

1шт.

4

700704951

DECAL

- caution

1шт.

5

700706290

DECAL

- parking brake

1шт.

6

700711968

DECAL

- warning

1шт.

7

700709415

DECAL

- header wear

1шт.

8

700713390

DECAL

- indicator

1шт.

9

700712488

DECAL

- panel

1шт.
