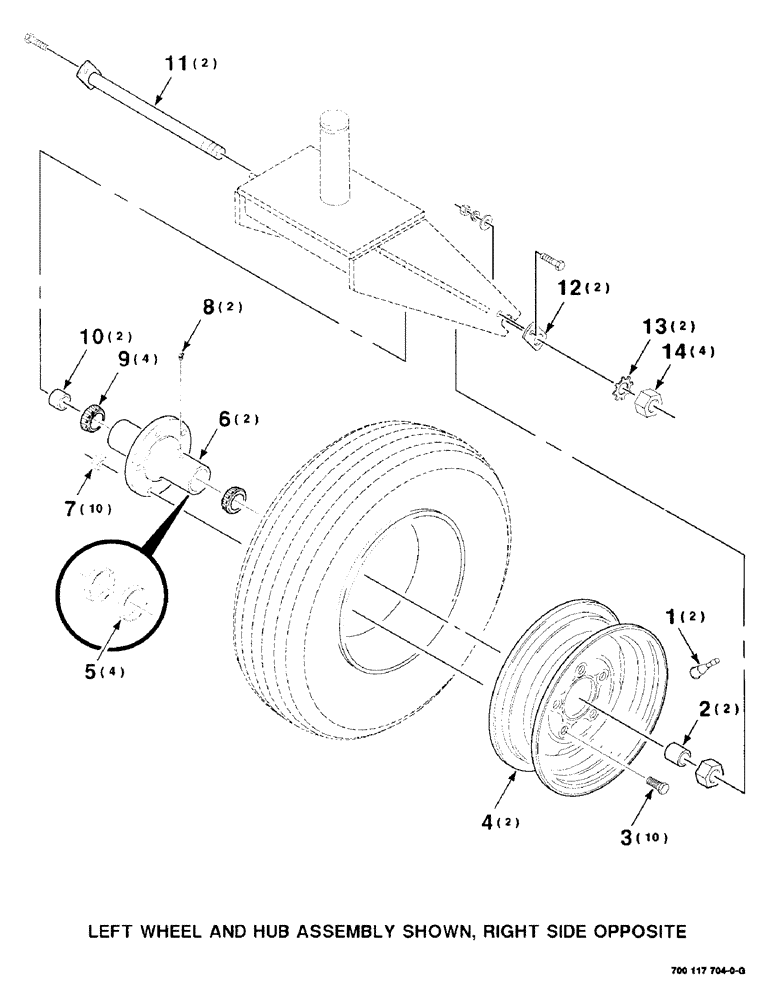

Запчасти Case IH 8850 (07-42) - TAIL WHEEL AND HUB ASSEMBLY (09) - CHASSIS

1

A38261

VALVE

STEM - valve

2шт.

2

328237

TUBE,1.5" OD, 1.531" Length

2шт.

3

T52730

WHEEL BOLT

9/16-18 WHEEL BOLT

10шт.

4

700708043

RIM

WHEEL 15 X 8LB

2шт.

5

50104

BEARING CUP,50.01mm OD

BEARING - cup

4шт.

6

6617278

HUB ASSY.

HUB ASSEMBLY (Includes item 5)

2шт.

7

425-119

NUT,Hex, 9/16"-18, G5

10шт.

8

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

2шт.

9

51805

ROLLER BEARING,25.4mm ID

BEARING - cone

4шт.

10

700101125

SPACER

TUBE

2шт.

11

700116268

SHAFT

WA - axle

2шт.

12

305581

CLIP

2шт.

13

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

2шт.

14

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 HJN

4шт.
