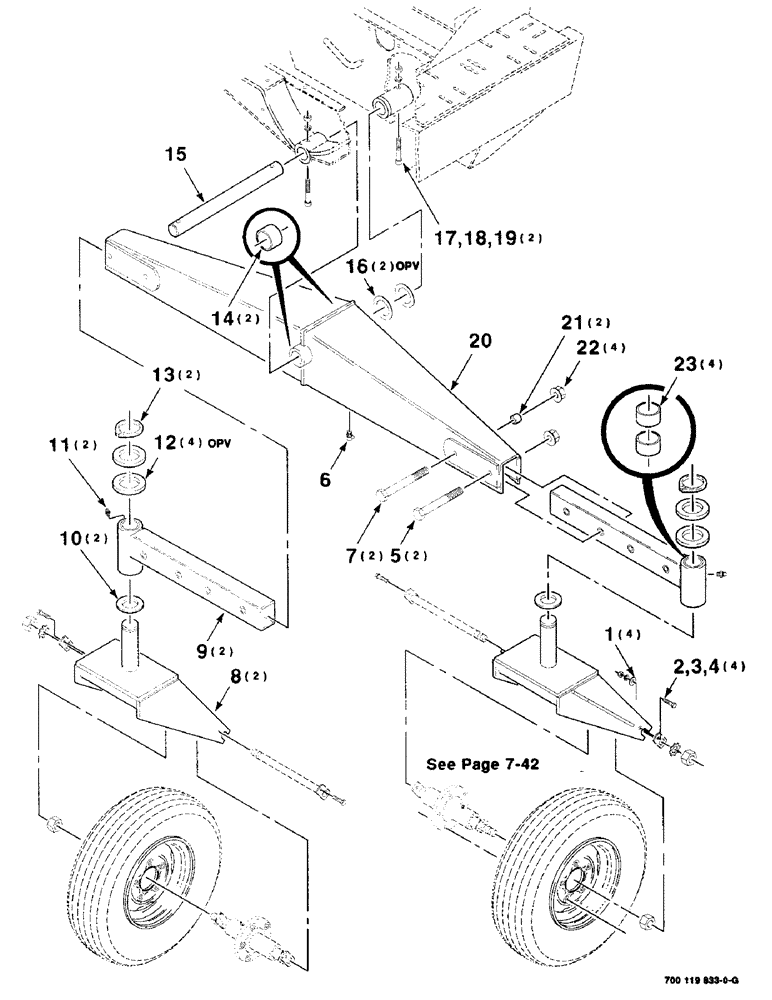

Запчасти Case IH 8850 (07-40) - TAIL WHEEL ASSEMBLY (09) - CHASSIS

1

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

3

425-106

NUT,3/8"-16, Cl 5

4шт.

4

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

326-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 8

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

7

26-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 8

7/8-9 X 7 C GR8

2шт.

8

700115621

FORK

WA

2шт.

9

700118797

AXLE

WA - rear (Includes item 23)

2шт.

10

6268841

WASHER

2шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

12

852947

BUSHING

2-1/4 X 14 GAUGE NRMB

4шт.

13

103-11225

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

2шт.

14

852491

BRONZE BUSHING

BUSHING - bronze

2шт.

15

6270219

SHAFT

1шт.

16

52548

SPECIAL WASHER

2 X 14 GAUGE NRMB

2шт.

17

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 X 3-1/4 HSHCS SPL

2шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

700118694

BEAM

WA - walking (Includes item 14)

1шт.

21

700118801

BUSHING

TUBE

2шт.

22

232-53114

FLANGE NUT,Flg, 7/8"-9

7/8-9 HFTLN GR/G

4шт.

23

852921

BRONZE BUSHING

BEARING - bronze

4шт.
