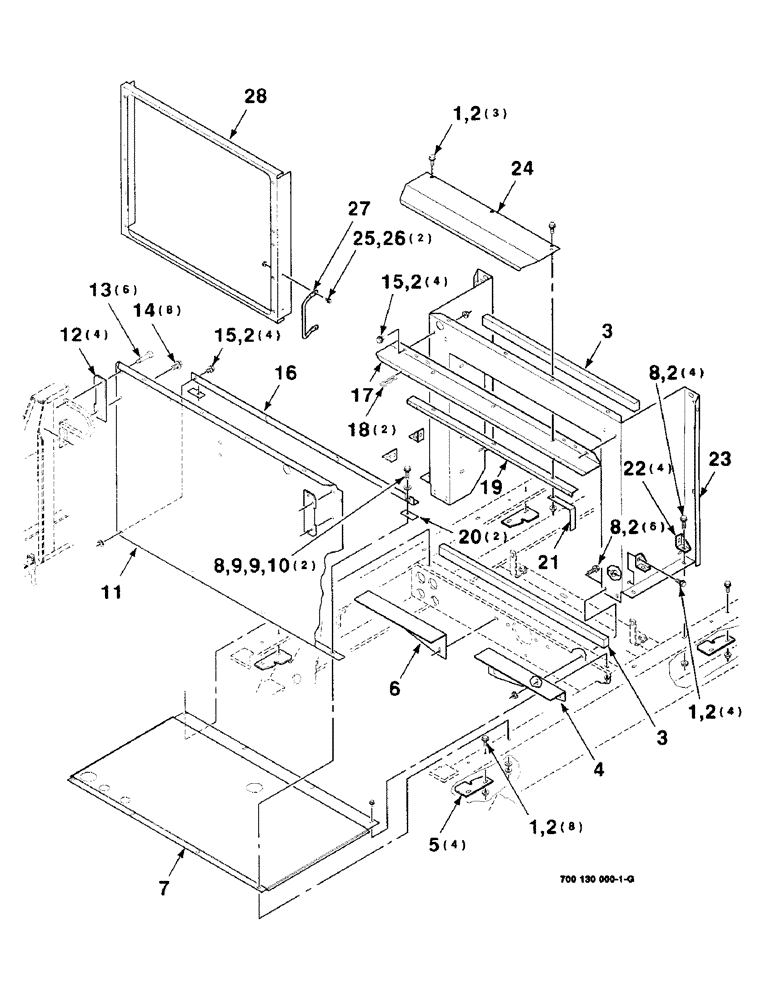

Запчасти Case IH 8850 (07-36) - PANEL STYLING ASSEMBLY, FRONT (09) - CHASSIS

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

15шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

33шт.

3

844530

GASKET

2шт.

4

700120967

ANGLE

- left

1шт.

5

700114985

STOP

- latch

4шт.

6

700120968

ANGLE

- right

1шт.

7

700114874

FLOOR

1шт.

8

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

12шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

10

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

11

700120962

PANEL

- front

1шт.

12

700111908

BAR PLATE

PLATE ASSEMBLY - hinge

4шт.

13

121-126

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

SCREW, Hex Soc Hd, Shdr, 5/16"-18 x 3/8"

6шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

8шт.

15

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

16

700120965

ANGLE

1шт.

17

700114879

ANGLE

1шт.

18

T54573

PIN

.120 WIRE HAIR PIN COTTER

2шт.

19

700114863

STOP

1шт.

20

700120969

SHIM

2шт.

21

700130064

ANGLE

- stop

1шт.

22

700120789

ANGLE

- front

4шт.

23

700130065

SUPPORT

BULKHEAD - radiator

1шт.

24

700130285

DEFLECTOR

1шт.

25

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

26

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

27

6829360

HANDLE

1шт.

28

700130063

SUPPORT

- cooler

1шт.
