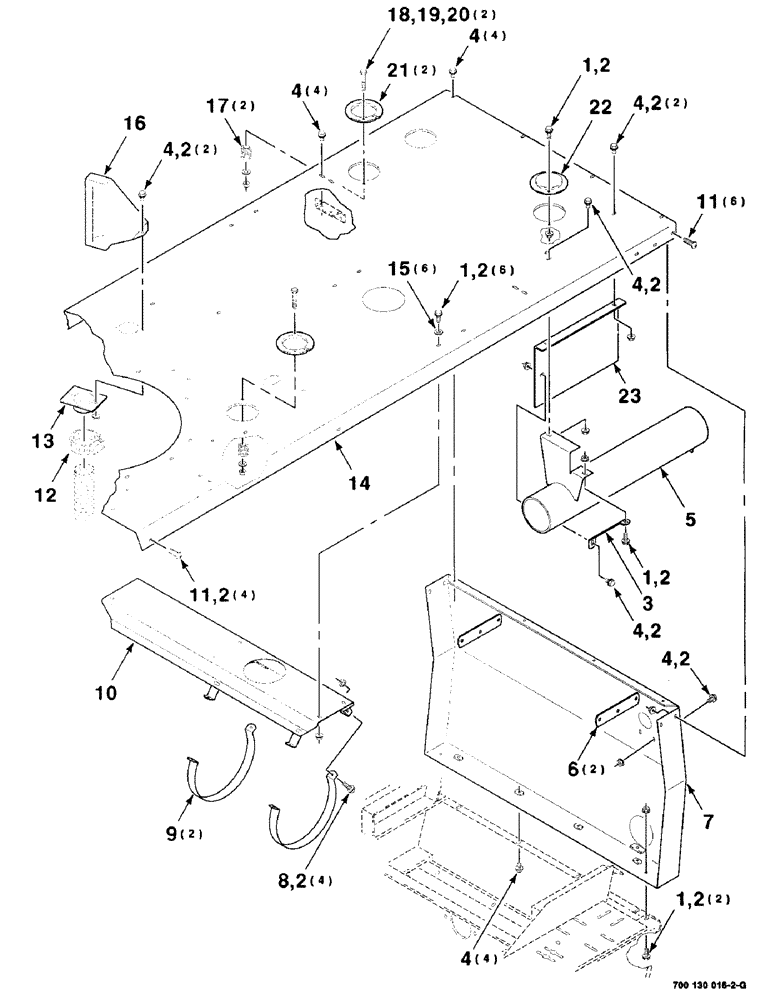

Запчасти Case IH 8850 (07-34) - HOOD ASSEMBLY (09) - CHASSIS

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

10шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

25шт.

3

700117999

STRAP

1шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

19шт.

5

700117876

TUBE

WA - exhaust

1шт.

6

700130105

STRAP

ASM

2шт.

7

700117972

PANEL

WA - rear

1шт.

8

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

4шт.

9

700130102

CLAMP

2шт.

10

700130099

CHANNEL

WA

1шт.

11

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 X 3/4 CRTHMS

10шт.

12

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose

1шт.

13

700114898

TUBE

WA

1шт.

14

700130103

HOOD

(S.N. CFH0099001 thru CFH0099164)

1шт.

700133963

HOOD

(S.N. CFH0099165 and later)

1шт.

15

495-81122

WASHER,.344" x 1 1/2" x .120"

FLAT WASHER

6шт.

16

700114903

HOUSING

WA

1шт.

17

CAS758342

SPRING

- compression

2шт.

18

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

20

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

2шт.

21

487777

COVER

2шт.

22

700114831

COVER

1шт.

23

700114857

SHIELD

- heat

1шт.
