(02-06) - U-JOINT ASSEMBLY, FRONT, 700713375 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8850 (02-06) - U-JOINT ASSEMBLY, FRONT, 700713375 U-JOINT ASSEMBLY COMPLETE (02) - ENGINE

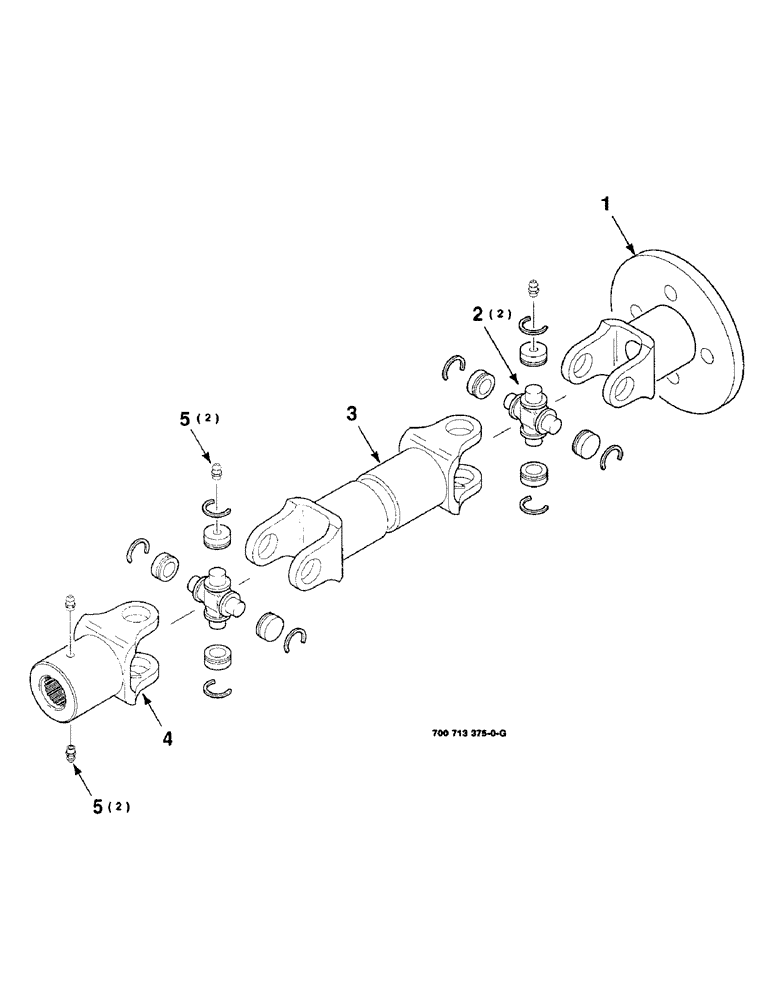

Схема запчастей Case IH 8850 - (02-06) - U-JOINT ASSEMBLY, FRONT, 700713375 U-JOINT ASSEMBLY COMPLETE (02) - ENGINE
1
4
2
5
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700713375

YOKE

U-JOINT COMPLETE

1шт.

1

700708203

LINKAGE YOKE

YOKE & FLANGE

1шт.

2

700711843

FLEXIBLE JOINT

KIT - cross & bearing

2шт.

3

811521

YOKE

DOUBLE - yoke

1шт.

4

7805849

FORK

YOKE - splined

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.
