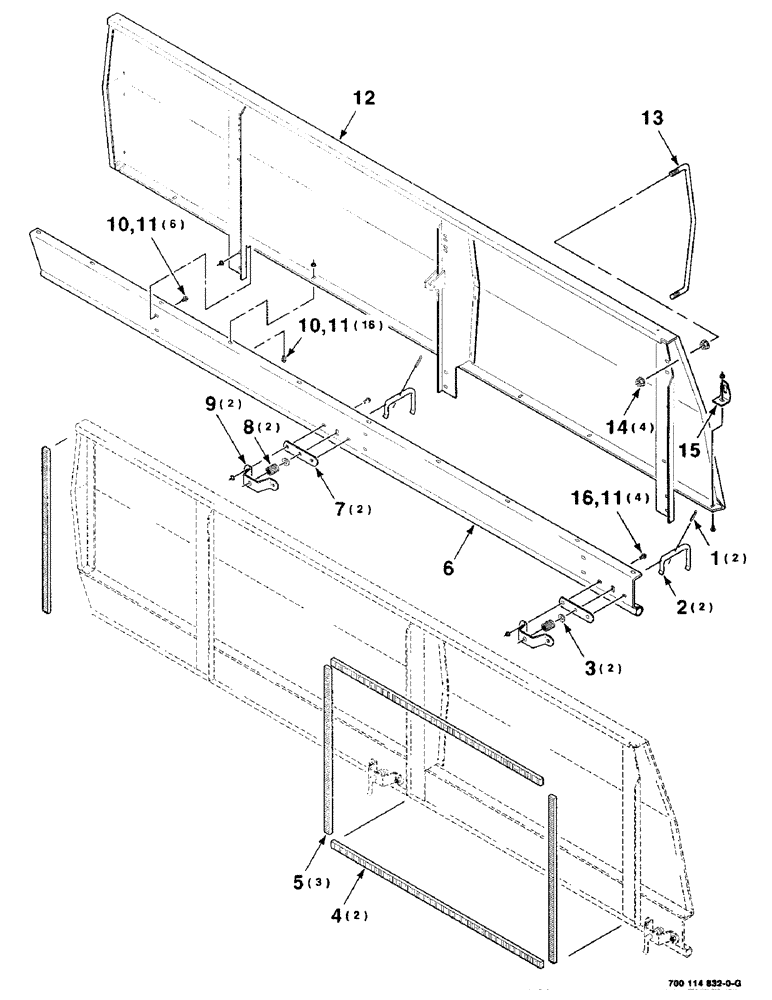

Запчасти Case IH 8850 (07-26) - PANEL STYLING SIDE ASSEMBLY, LEFT (09) - CHASSIS

1

438-11232

LOCK PIN,3/16" x 2", Slotted

3/16 X 2-1/4 SSP

2шт.

2

700111868

HANDLE

2шт.

3

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

4

700114815

WEATHERSTRIP

WEATHER STRIPPING

2шт.

5

700114816

WEATHERSTRIP

WEARTHER STRIPPING

3шт.

6

700114834

PANEL

- lower, left

1шт.

7

700111870

LARGE PLATE

PLATE

2шт.

8

58685

SPRING

- compression

2шт.

9

700111869

BRACKET

MTG - latch

2шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

22шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

26шт.

12

700114837

COVER

ASSEMBLY - left

1шт.

13

700111867

HANDLE

1шт.

14

7704919

FLANGE NUT,Flg, 5/8"-11, G8

5/8-11 HFN GR8

4шт.

15

700114855

ANGLE

1шт.

16

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.
