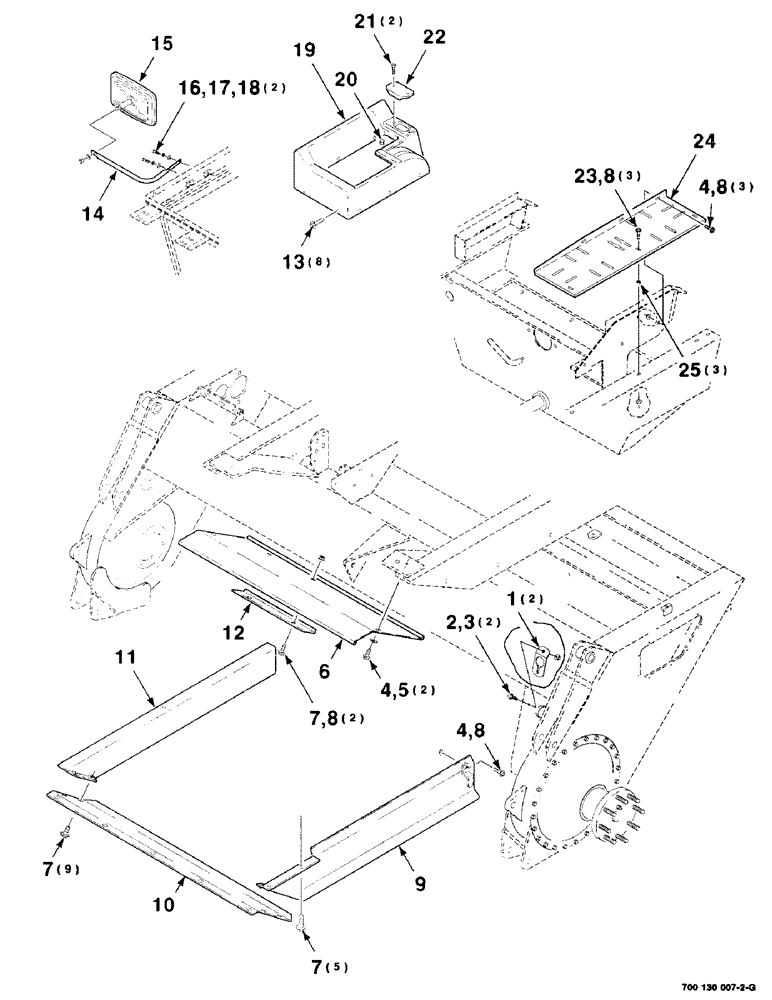

Запчасти Case IH 8850 (07-22) - PLATFORM SHIELDS ASSEMBLY, LOWER (09) - CHASSIS

1

700130071

HANGER

- rear

2шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

5

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

6

700119714

COVER

- front

1шт.

7

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

16шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

9шт.

9

700111920

SHIELD

WA - left

1шт.

10

700115744

COACHWORK

SHIELD - front

1шт.

11

700115740

SHIELD

WA - right

1шт.

12

700119713

ANGLE

1шт.

13

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 X 1/2 HWHTCTS

8шт.

14

700117841

SUPPORT

MIRROR MOUNTING - right

1шт.

15

L74714

MIRROR

1шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

19

700111844

COVER

CONSOLE

1шт.

20

129-884

CROWN NUT,Crown, 1/4"-20

1/4-20 CLOSED HEX CAP NUT

1шт.

21

7706203

SCREW,Pan, #6 - 20 x 1/4"

#6-20 X 1/4 SPHTCTS

2шт.

22

700111927

COVER

- fuse box

1шт.

23

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

3шт.

24

700124652

RACK

- battery

1шт.

25

6179832

SPACER

3шт.
