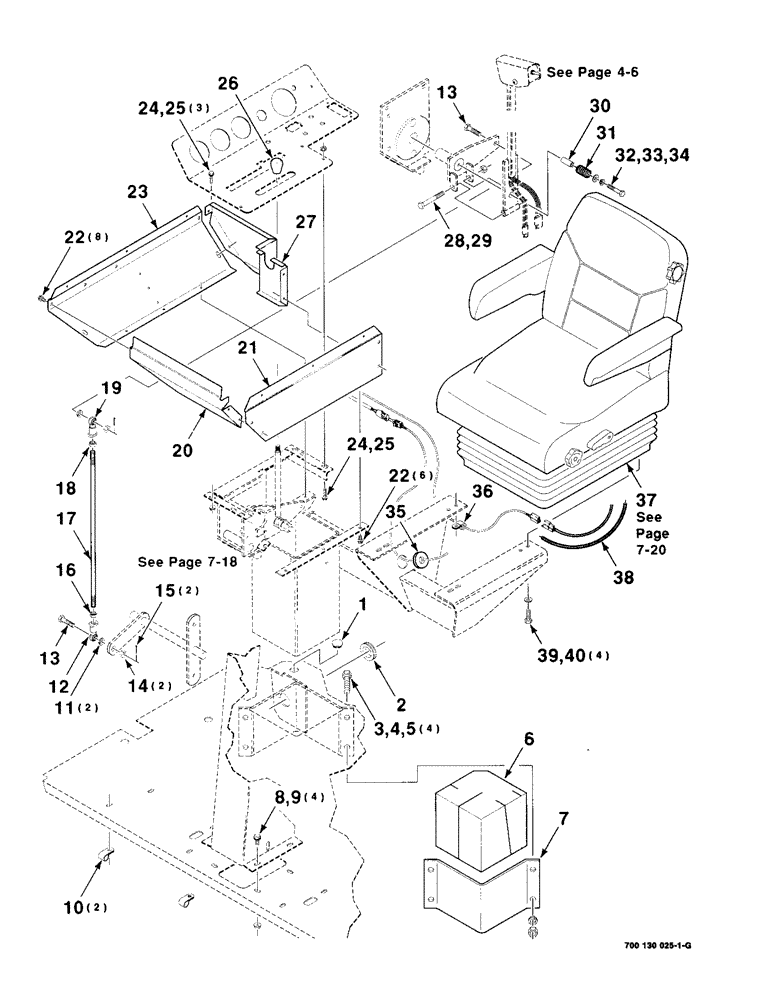

Запчасти Case IH 8850 (07-16) - CONSOLE, SEAT SUPPORT AND HOOKUP ASSEMBLY (09) - CHASSIS

1

142094

HOLE PLUG BUTTON,1'

PLUG - button

1шт.

2

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

700707107

PLUG

- foam

1шт.

7

700110018

CLAMP

1шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

11

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

700705523

SPHERICAL BEARING,9.52 mm ID x 12.7 mm

ROD END - left hand thread

1шт.

13

700111557

SCREW

3/8-16 X 1-1/2 C, special

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

16

129-323

SPECIAL NUT,3/8"-24, G5, LH

1шт.

17

700111010

ROD

- link

1шт.

18

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

19

51383

PIPE,12.7 mm

ROD END

1шт.

20

700111076

PANEL

- front

1шт.

21

700111073

PANEL

- inside

1шт.

22

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 X 1/2 HWHTCTS

14шт.

23

700111074

PANEL

- outside

1шт.

24

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

4шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

26

173808C1

KNOB

1шт.

27

700111075

PANEL

- rear

1шт.

28

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

29

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

30

700111576

SPACER

1шт.

31

58131

TUBE

1шт.

32

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

34

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

35

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.

36

700708090

CLAMP

1шт.

37

700713385

SEAT

ASSEMBLY - cloth

1шт.

38

702400102

CONDUIT

COVER - conduit (30 foot bulk length)

1шт.

39

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

40

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
