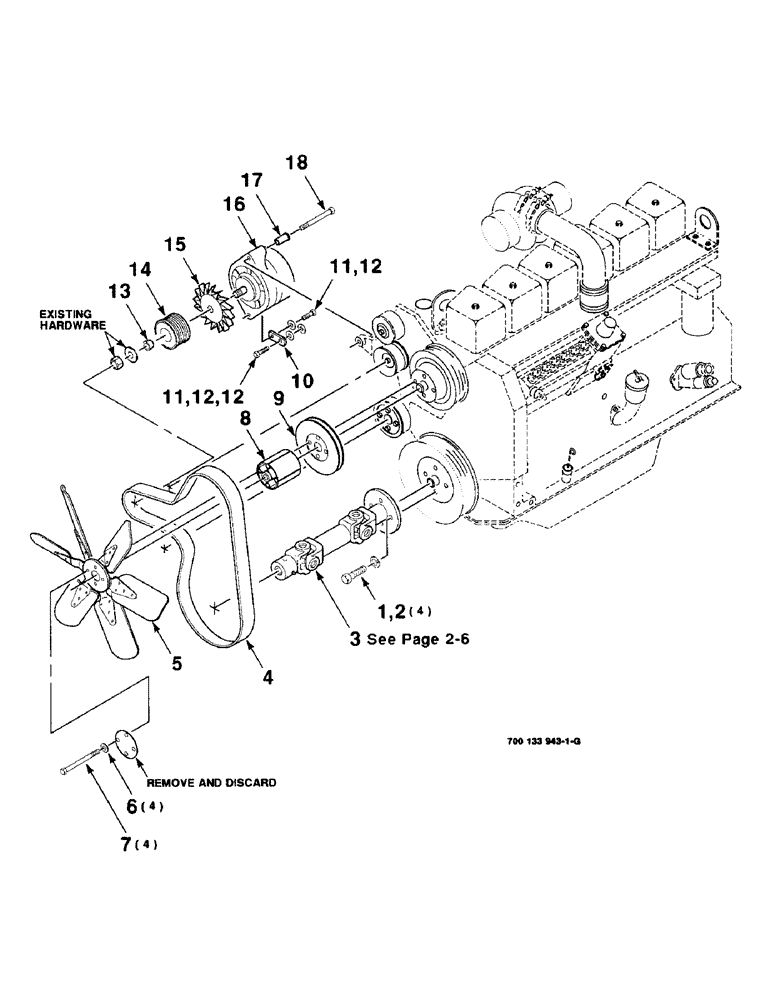

Запчасти Case IH 8850 (02-04) - ENGINE ASSEMBLY, ALTERNATOR, FAN AND FRONT DRIVE, SERIAL NUMBER CFH0099165 AND LATER (02) - ENGINE

1

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

BOLT, Hex, 7/16"-14 x 1", G5, Full Thd

4шт.

2

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

3

700713375

YOKE

UNIVERSAL JOINT YOKE U-JOINT ASSEMBLY

1шт.

4

J911561

BELT,27.92mm W x 1663.7mm L, 8 Ribs

1шт.

5

700713376

FAN

FAN

1шт.

6

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

M10 HARDENED PLAIN WASHER

4шт.

7

700708765

BOLT

M10 X 1.5 X 115 C

4шт.

8

A184524

SPACER

SPACER - fan

1шт.

9

A189155

PULLEY

SHEAVE

1шт.

10

700117858

STRAP

STRAP

1шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 25 mm

2шт.

13

J908563

RETAINER

RETAINER - pulley

1шт.

14

J908560

PULLEY

PULLEY - alternator

1шт.

15

221425R1

FAN

FAN - alternator

1шт.

16

A187873

ALTERNATOR,12V, 65A

ALTERNATOR

1шт.

16

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

16

AC187873

CORE-ALTERNATOR

Return number

1шт.

16

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

17

J902469

SPACER

SPACER

1шт.

18

7771975

SCREW,Hex, M10 x 100mm, Cl 8.8

M10 X 1.5 X 100 C

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

WASHER, M8 x 16 x 1.6

3шт.
