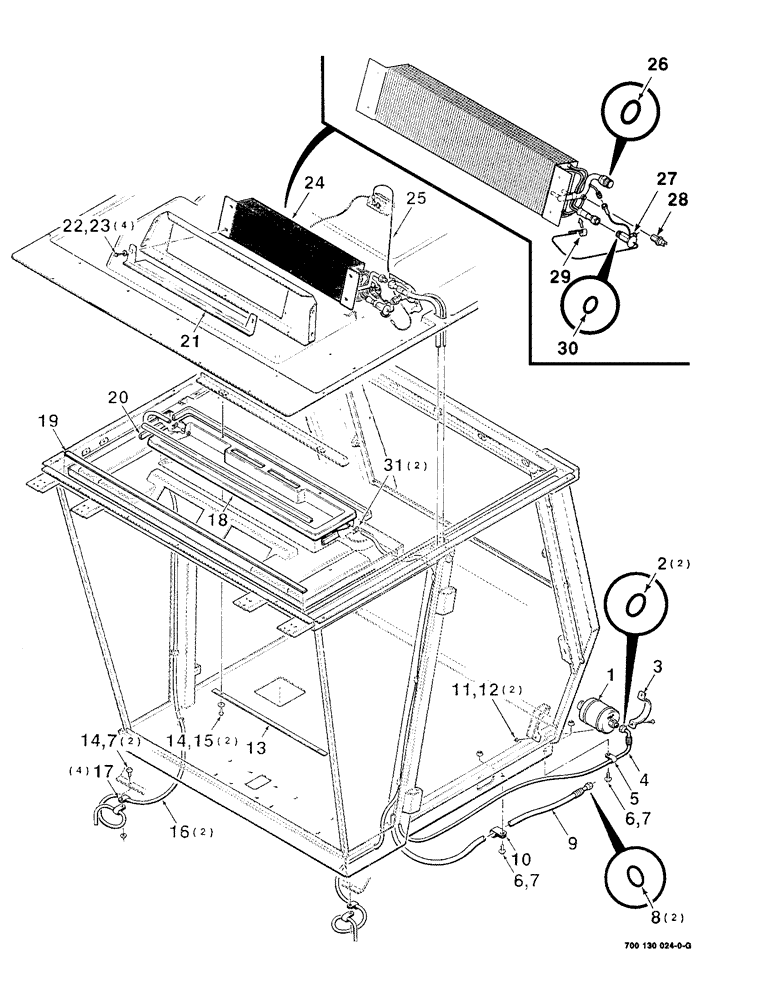

Запчасти Case IH 8850 (07-06) - AIR CONDITIONER EVAPORATOR AND DRYER ASSEMBLY (09) - CHASSIS

1

700705099

RECEIVER-DRYER

RECEIVER - dryer

1шт.

2

700712717

O-RING

2шт.

3

6804587

CLAMP

- dryer

1шт.

4

700712706

HOSE

ASM. - 5/16 I.D. (Includes item 2)

1шт.

5

756460

CLAMP

1шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

8

31-1809

O-RING

2шт.

9

700712716

HOSE

ASM. - 1/2 I.D. (Includes item 8)

1шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

11

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

2шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

13

700115437

STRAP

1шт.

14

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

4шт.

15

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

16

700110137

HOSE,0.50" ID x 156.10",

Drain 0.50" ID x 156.10"

2шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

18

700119893

PAN

ASSEMBLY - drain

1шт.

19

6805055

SEAL

(12 foot bulk length)

1шт.

20

700110139

SEAL

SEAL (12 foot bulk length)

1шт.

21

700120672

PAN

- drain

1шт.

22

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

23

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

24

700712700

HEATER ASSY.

CORE - evaporator (Includes item 26)

1шт.

25

700706889

WIRE

- electrical

1шт.

26

700712718

O-RING

- Neoprene (.426 I.D.)

1шт.

27

700711760

VALVE

- expansion (Includes item 30)

1шт.

28

700706904

PRESSURE SWITCH

SWITCH - low pressure

1шт.

29

8020398

CLAMP

- spring

1шт.

30

700712771

O-RING

- Neoprene (.176 I.D.)

1шт.

31

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.
