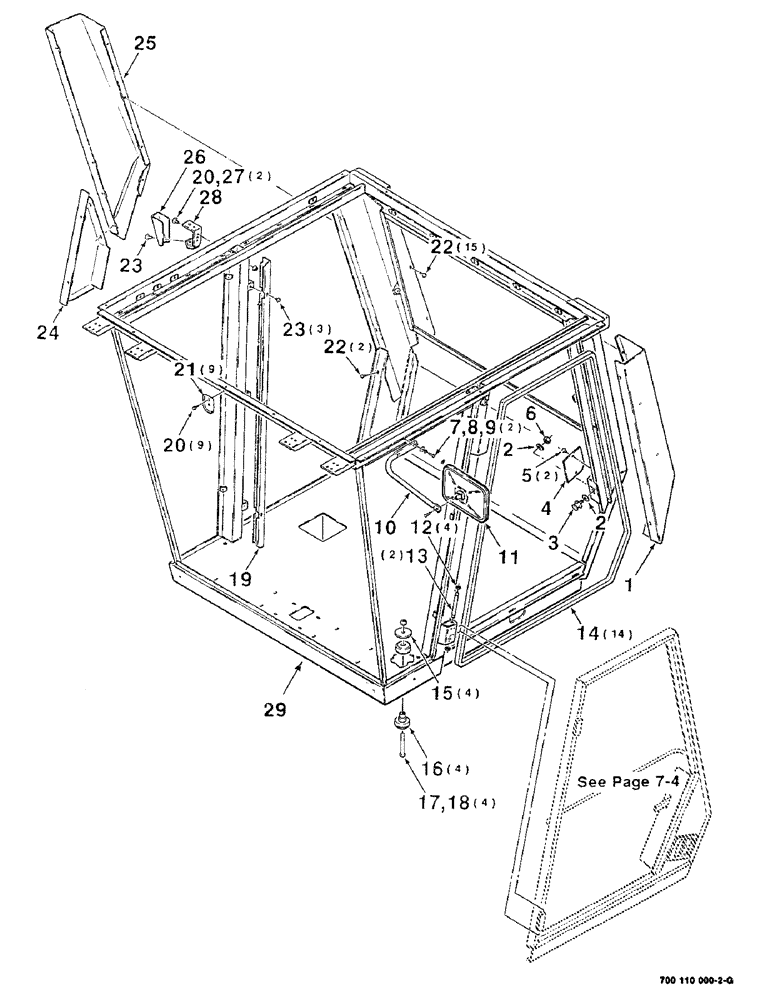

Запчасти Case IH 8850 (07-02) - CAB FRAME ASSEMBLY (09) - CHASSIS

1

700110102

SHIELD

- rear, left

1шт.

2

495-11047

WASHER,7/16", SAE

2шт.

3

700704801

BOLT,Striker, 7/16" - 14 x 1.715"

- striker

1шт.

4

700110105

COVER PLATE

PLATE - cover

1шт.

5

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

2шт.

6

425-107

NUT,7/16"-14, G5

1шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

2шт.

10

700117840

SUPPORT

MOUNTING - mirror

1шт.

11

L74714

MIRROR

- rear view

1шт.

12

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, #37, .300" Dia, E-Type

4шт.

13

700110095

PIN

- hinge

2шт.

14

700709973

DOOR SEAL

SEAL - door (15 foot bulk)

14шт.

15

235820

WASHER

4шт.

16

A141451

SHOCK ABSORBER

MOUNT - rubber

4шт.

17

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8-11 X 3-3/4 C

4шт.

18

425-1010

NUT,5/8"-11, G5

4шт.

19

700110109

SHIELD

- post, right

1шт.

20

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

11шт.

21

700122540

CLIP

- glass retainer

9шт.

22

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 X 1/2 CRPHMS

17шт.

23

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 X 1/2 HWHTCTS

4шт.

24

700110107

PANEL

- lower, right

1шт.

25

700110099

SHIELD

- rear, right

1шт.

26

700110151

MOUNTING PLATE

COVER - mounting, antenna

1шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

28

700110150

MOUNTING PLATE

MOUNTING - antenna

1шт.

29

700110006

FUNNEL

FRAME WA - cab

1шт.
