(08-66) - HYDRAULIC CYLINDER ASSEMBLY, HEADER TILT, 700712017 HYDR CYLINDER COMPLETE, 2-1/2" BORE X 8" STROKE

Запчасти Case IH 8850 (08-66) - HYDRAULIC CYLINDER ASSEMBLY, HEADER TILT, 700712017 HYDR CYLINDER COMPLETE, 2-1/2" BORE X 8" STROKE (08) - HYDRAULICS

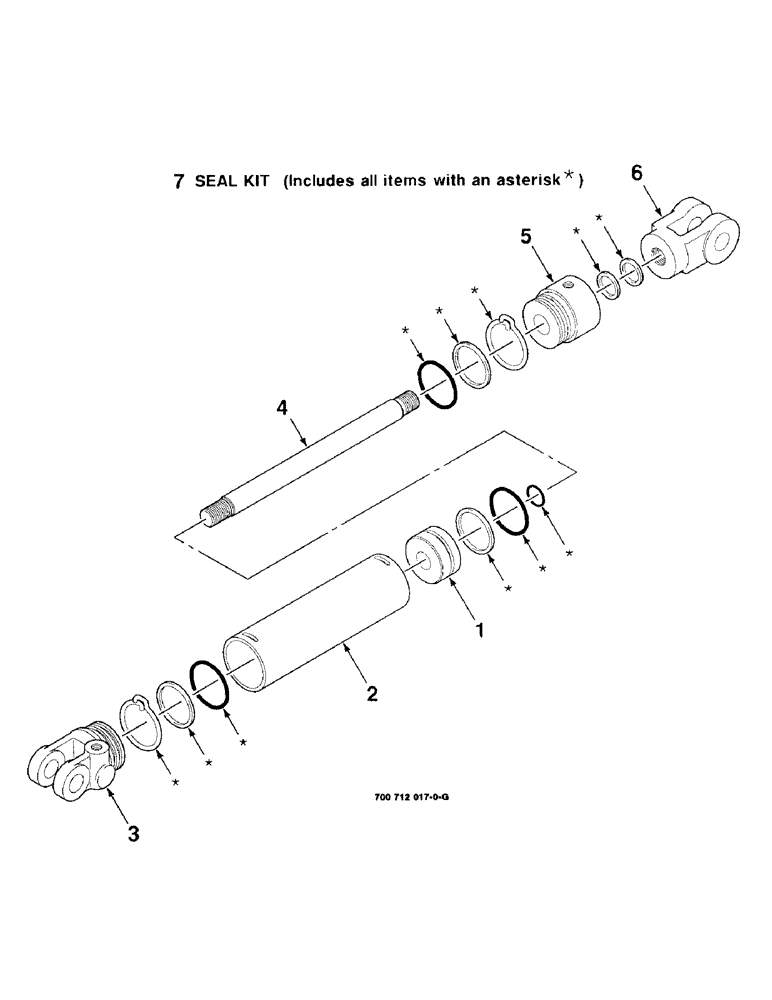

Схема запчастей Case IH 8850 - (08-66) - HYDRAULIC CYLINDER ASSEMBLY, HEADER TILT, 700712017 HYDR CYLINDER COMPLETE, 2-1/2" BORE X 8" STROKE (08) - HYDRAULICS
2
1
4
3
7
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712017

CYLINDER

HYDRAULIC CYLINDER COMPLETE

1шт.

1

102905A1

PISTON

- cylinder

1шт.

2

102906A1

TUBE

BARREL

1шт.

3

700704894

CYLINDER HEAD

HEAD - cylinder

1шт.

4

102907A1

ROD

- piston

1шт.

5

102909A1

BEARING

- cylinder rod

1шт.

6

102908A1

END

CLEVIS - rod end

1шт.

7

H673838

SEAL

SEAL KIT, Includes items in art marked with an asterisk

1шт.
