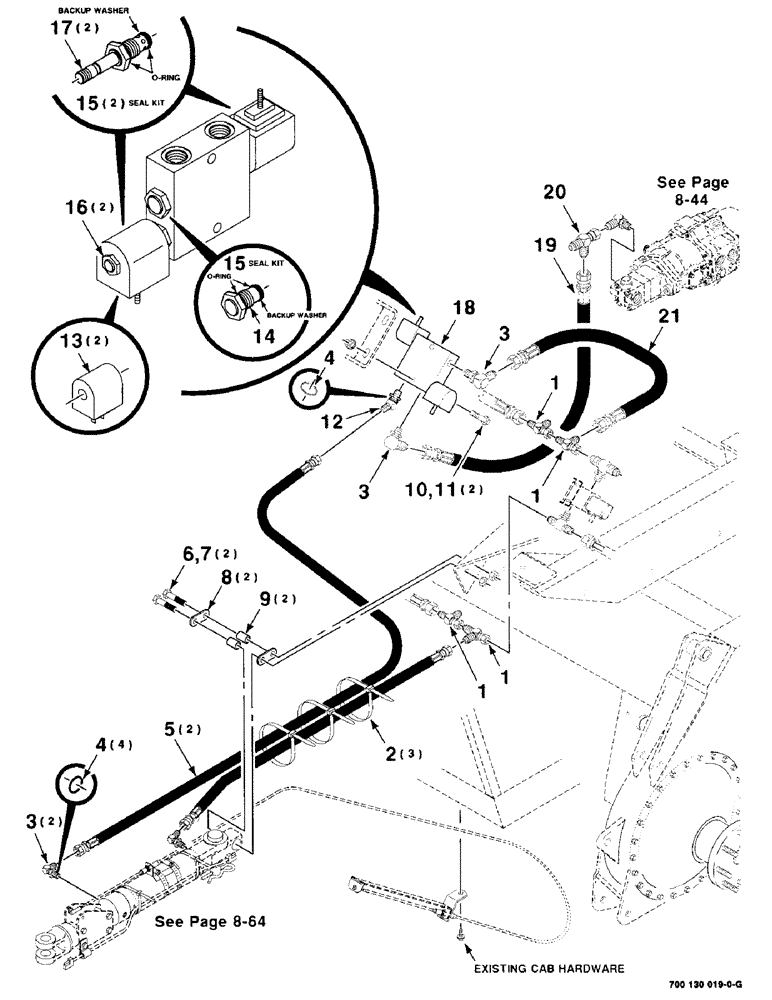

Запчасти Case IH 8850 (08-62) - HYDRAULIC HEADER ANGLE TILT ASSEMBLY (08) - HYDRAULICS

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

4шт.

2

529070

CABLE TIE,368.3mm L

TIE - cable

3шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 4) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

4шт.

4

738468

O-RING

5шт.

5

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

6.35 mm ID x 1525.00 mm

2шт.

6

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

2шт.

7

425-1012

NUT,3/4"-10, G5

3/4-10 H

2шт.

8

700117954

STRAP

2шт.

9

700114925

BUSHING

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - hydraulic 45 degrees (Includes item 4)

1шт.

13

700706149

COIL

ASSEMBLY

2шт.

14

700707832

VALVE PRESSURE RELIE

CHECK VALVE ASSEMBLY (5 PSI)

1шт.

15

700706154

SEAL KIT

3шт.

16

700706151

NUT

2шт.

17

700706153

HYDRAULIC VALVE

CARTRIDGE

2шт.

18

700707590

CONTROL VALVE

VALVE - complete (Includes items 13 thru 17)

1шт.

19

700707731

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

20

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

21

7872864

HOSE ASSY.

HOSE - hydraulic

1шт.
