Запчасти Case IH 8850 (08-58) - HYDRAULIC TRANSMISSION CONTROL ASSEMBLY (08) - HYDRAULICS

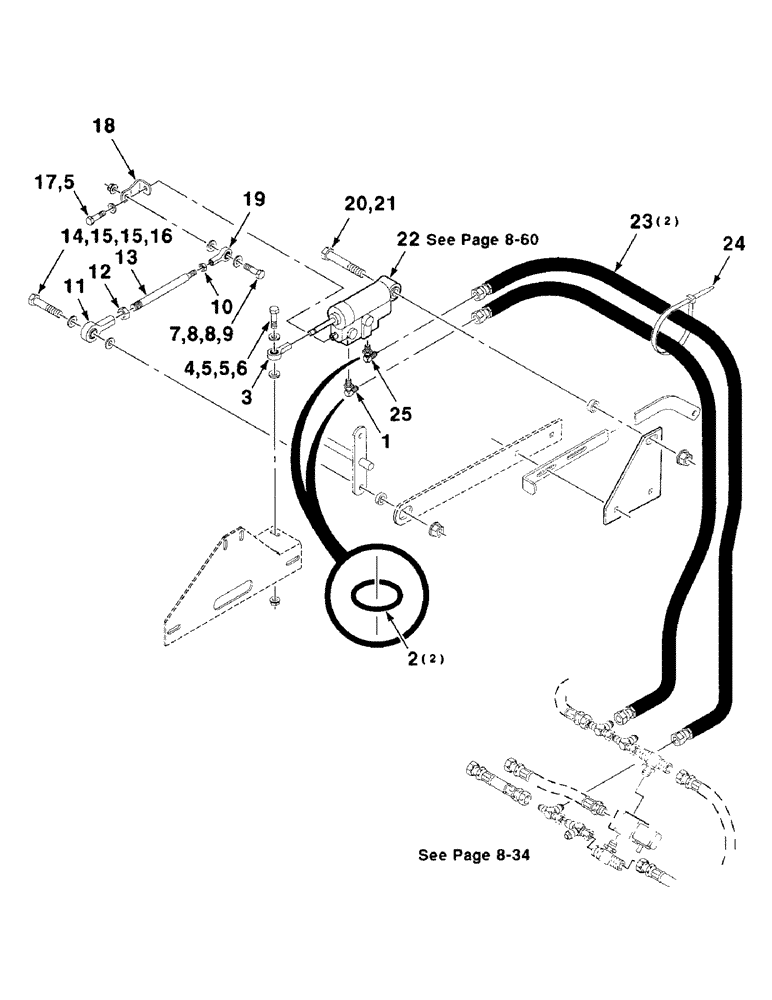

Схема запчастей Case IH 8850 - (08-58) - HYDRAULIC TRANSMISSION CONTROL ASSEMBLY (08) - HYDRAULICS
25
23
2
4
3
22
15
5
17
18
9
14
21
1
13
7
15
5
16
12
11
8
5
20
24
6
10
8
19

Артикул

Название

Примечание

Количество

1

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degrees (Includes item 2)

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

3

700710788

TRACK ROD END

BEARING - rod end

1шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

1шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

10

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

51391

END

BEARING - rod end

1шт.

12

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

13

700121554

LINK

1шт.

14

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

15

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

16

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

17

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

18

700121183

BRACKET

ANGLE

1шт.

19

CAS51383

END

BEARING - rod end

1шт.

20

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 C

1шт.

21

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

22

700710787

SERVO-CONTROL

SERVO - control

1шт.

23

700710948

HYDRAULIC HOSE,6.35 mm ID x 800.00 mm, SAE 100R1

6.35 mm ID x 800.00 mm, SAE 100R1

2шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

7792500

ELBOW

- 90 degrees (Includes item 2)

1шт.

Выбрано товаров: 25
