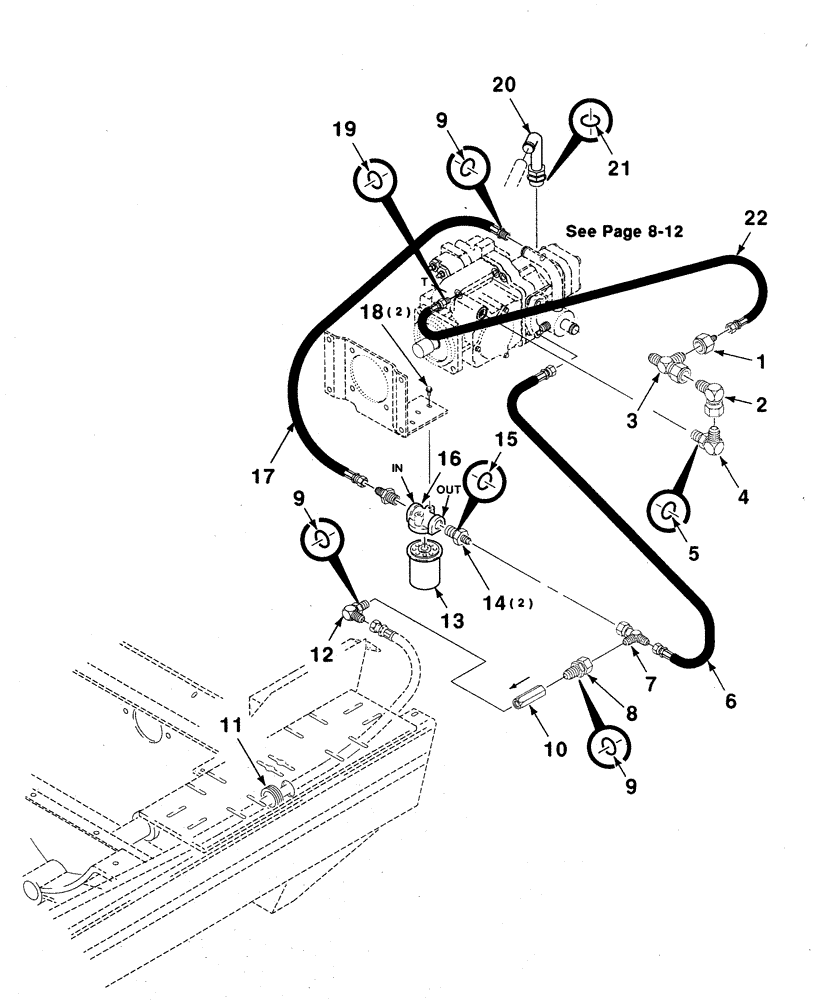

Запчасти Case IH 8850 (08-56) - HYDRAULIC CHARGE ASSEMBLY, REAR (08) - HYDRAULICS

1

7791361

FITTING

ADAPTER - special

1шт.

2

7046485

ELBOW

- swivel 90 degrees

1шт.

3

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

4

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degrees (Includes item 5)

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

8843831

HOSE

- hydraulic

1шт.

7

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

8

700713219

CONNECTOR, ELEC

ADAPTER (Includes item 9)

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

10

700713392

VALVE

- check

1шт.

11

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

12

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degrees (Includes item 9)

1шт.

13

8040461

FILTER

ELEMENT

1шт.

14

700701753

HYD CONNECTOR

ADAPTER (Includes item 15)

2шт.

15

738484

O-RING

1шт.

16

8843260

FILTER

HEAD

1шт.

17

700707394

HOSE

- hydraulic (Includes item 9)

1шт.

18

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

19

738468

O-RING

1шт.

20

700713393

TUBE,25.4 mm OD, 140, 40 mm Length

ASSEMBLY (Includes item 21)

1шт.

21

738476

O-RING

1шт.

22

700707276

HOSE

- hydraulic (Includes item 19)

1шт.
