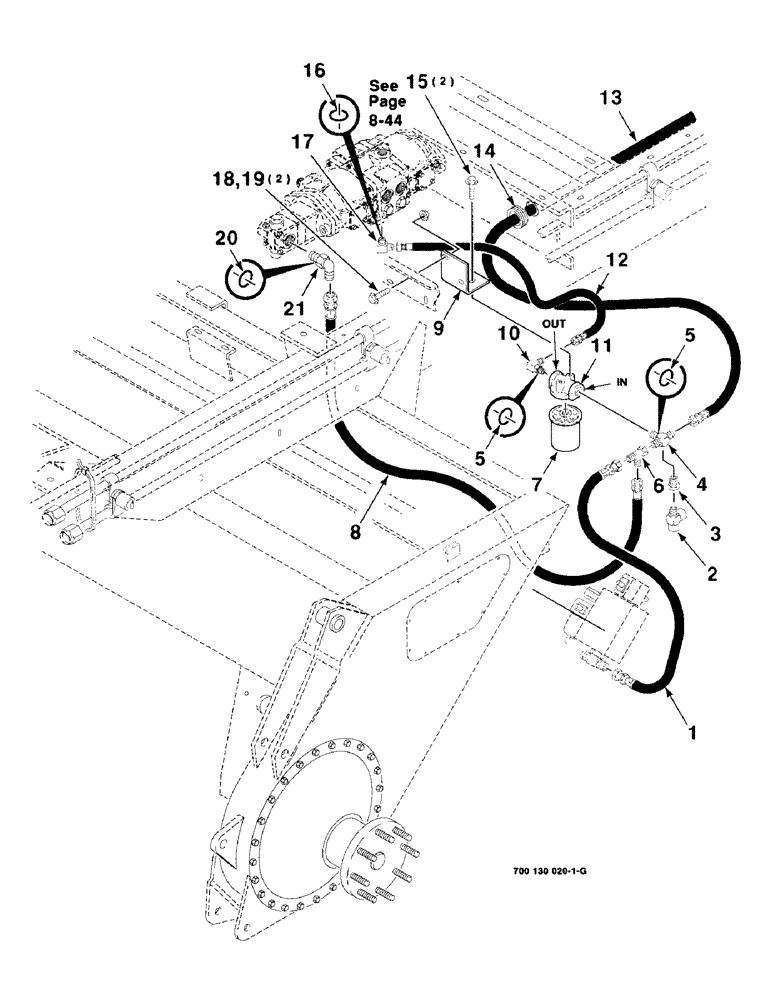

Запчасти Case IH 8850 (08-54) - HYDRAULIC CHARGE ASSEMBLY (08) - HYDRAULICS

1

700706976

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

2

7846041

FITTING

- tee

1шт.

3

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Pipe bushing 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

4

700114940

3 WAY CONNECTION

TEE (Includes item 5)

1шт.

5

738484

O-RING

2шт.

6

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

7

8040461

FILTER

ELEMENT

1шт.

8

700701605

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

9

6827224

ANGLE

MOUNTING ANGLE

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. item 5) 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

11

8843260

FILTER

HEAD

1шт.

12

8843054

HOSE

- hydraulic

1шт.

13

700706991

HOSE

- hydraulic

1шт.

14

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

15

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(Incl. item 16) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

18

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes item 20) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.
